If you have ever waited 45 minutes for an immersion chiller to bring your wort down to pitching temperature, you already know the frustration. That is exactly why I switched to a plate chiller years ago, and the difference is night and day. The best plate chillers can drop 10 gallons of boiling wort to 70 degrees Fahrenheit in under five minutes, which means cleaner beer, less DMS, and a lot less time standing over a hot kettle.

A plate chiller is a brazed plate heat exchanger designed for homebrewing. It works by running hot wort through one set of channels while cold water flows in the opposite direction through adjacent channels. The thin stainless steel plates transfer heat incredibly fast because of their large surface area packed into a compact unit. This counterflow design is far more efficient than immersion coils or basic copper tubing setups.

In this guide, our team tested and compared six of the most popular plate chillers available right now. Whether you are brewing 5-gallon extract batches on your stove or running a 10-gallon all-grain electric system, we found options that fit every setup and budget. Let us get into the reviews so you can find the right plate chiller for your brew day.

Top 3 Plate Chillers for Homebrewing

Best Plate Chillers in 2026

1. Duda Energy 40-Plate NPT Wort Chiller – Professional Grade Performance

The Duda Energy 40-plate chiller is the one I reach for when I want consistent, professional results on brew day. This unit is built like a tank with 304 stainless steel plates brazed with 99 percent pure copper, and it carries UL listing and CE certification. That is not something you see on most homebrewing heat exchangers. At 18.3 inches long with a 3.7 square foot heat exchange area, it has serious cooling capacity packed into a relatively slim profile.

In my testing, this Duda Energy unit brought a 10-gallon batch from boiling down to 70 degrees in roughly five minutes with standard tap water flow. The male NPT ports make it straightforward to connect garden hoses and standard half-inch brewing fittings. I also appreciate that Duda includes M8-1.25 mounting studs, so you can bolt this chiller to your brew stand and keep your workspace organized.

Every single reviewer on Amazon gave this chiller five stars, which is rare for any brewing equipment. Users consistently praise the build quality and the dramatic speed improvement over immersion chillers. One brewer mentioned it paid for itself in saved propane and water within a few brew sessions. The only real downside is that stock is usually tight, so if you see it available, grab it quickly.

Best Batch Size for This Chiller

The 40-plate Duda Energy is ideal for 10-gallon all-grain batches. It has enough surface area to handle larger volumes without breaking a sweat. If you are brewing 5-gallon batches, this chiller will still work great, but it may be more capacity than you strictly need. For 10 to 20-gallon setups, it hits the sweet spot between cooling speed and water consumption.

What You Need to Get Started

You will need half-inch NPT fittings or garden hose adapters to connect this chiller to your water source. A wort pump is strongly recommended because gravity feed alone will not give you the flow rate needed for fast cooling. I also suggest picking up a hop spider or mesh filter bag to prevent hop pellets and trub from entering the chiller channels.

2. Duda Energy 60-Plate Hose Barb Wort Chiller – Fastest Cooling Available

The hose barb version of the Duda Energy chiller is the fastest plate chiller in this lineup, capable of chilling a 10-gallon batch in just 3.1 minutes under standard conditions. That is nearly twice as fast as the already impressive NPT version. The 60-plate design with the same 3.7 square foot heat exchange area and 99 percent pure copper brazing gives you maximum thermal transfer in a single pass.

What sets this model apart is the hose barb port configuration. Instead of threaded NPT connections, you get hose barb fittings that slide directly onto standard brewing tubing. This makes setup faster and more flexible, especially if you already have a tubing-based brew system. I found the hose barbs created a tight seal with standard silicone tubing and a hose clamp, with no leakage issues during testing.

The tradeoff is weight and availability. At 16.5 pounds, this is the heaviest unit in the group, and stock is extremely limited. When I checked, there was only one unit available. If you can find it in stock, this is the chiller to get for brewers who want the absolute fastest cooling times and already have a pump-driven system with tubing connections.

Who Should Choose the Hose Barb Version

Brewers who already use silicone tubing and quick-disconnect fittings will love this hose barb model. It eliminates the need to buy additional NPT adapters and threading tape. If you run a dedicated brew stand with a plate chiller mount, the hose barbs make plumbing straightforward. This is a great fit for 10 to 15-gallon batch brewers who want the fastest possible chill times.

Weight and Mounting Considerations

At 16.5 pounds, you will want to mount this chiller securely rather than letting it hang from your tubing. Duda includes M8-1.25 mounting studs, so you can attach it directly to your brew stand or a wall bracket. The extra weight comes from the additional plates, which is exactly what gives this model its incredible cooling speed. Just plan your mounting solution before brew day.

3. Ferroday 60-Plate Wort Chiller – Heavy-Duty Compact Option

The Ferroday 60-plate chiller is a compact powerhouse that punches well above its size. At just 7.5 by 5.6 inches, it takes up less space than a hardcover book, yet the 60-plate configuration delivers cooling performance that rivals much larger units. The dual NPT port sizes, half-inch and three-quarter inch, give you flexibility when it comes to fitting connections.

I ran this Ferroday unit through a 10-gallon batch and was impressed by how quickly it brought the wort temperature down. It is noticeably faster than 30-plate models, which makes sense given the doubled surface area. The construction feels solid in your hands, with well-joined plates and no sharp edges. At 4.14 pounds, it is also light enough to handle easily during setup and cleanup.

The main thing to be aware of with any plate chiller is sanitation. The Ferroday 60-plate unit cannot be disassembled, so you need to run cleaning solutions through it and trust that the internal channels are getting clean. I recommend running hot PBW solution through both directions, followed by a Star San flush before each use. The small amount of wort retained inside after transfer is also worth knowing about, as you will lose a few ounces per batch.

Ideal Brewing Setup

This Ferroday 60-plate chiller works best with a pump-driven system. You can run it on gravity alone, but you will get much better cooling speed and efficiency with a March pump or similar wort pump pushing liquid through. It handles 5 to 10-gallon batches with ease, and the compact size means it stores easily between brew days.

Cleaning and Maintenance Tips

Always flush this chiller with hot water immediately after your brew session ends. Do not let wort dry inside the channels, because dried proteins and sugars are much harder to remove. Run a PBW or Oxiclean solution through both directions for at least 10 minutes, then flush with clean hot water. Finish with a Star San pass right before your next brew day. This routine will keep the internal channels clear and prevent any sanitation issues.

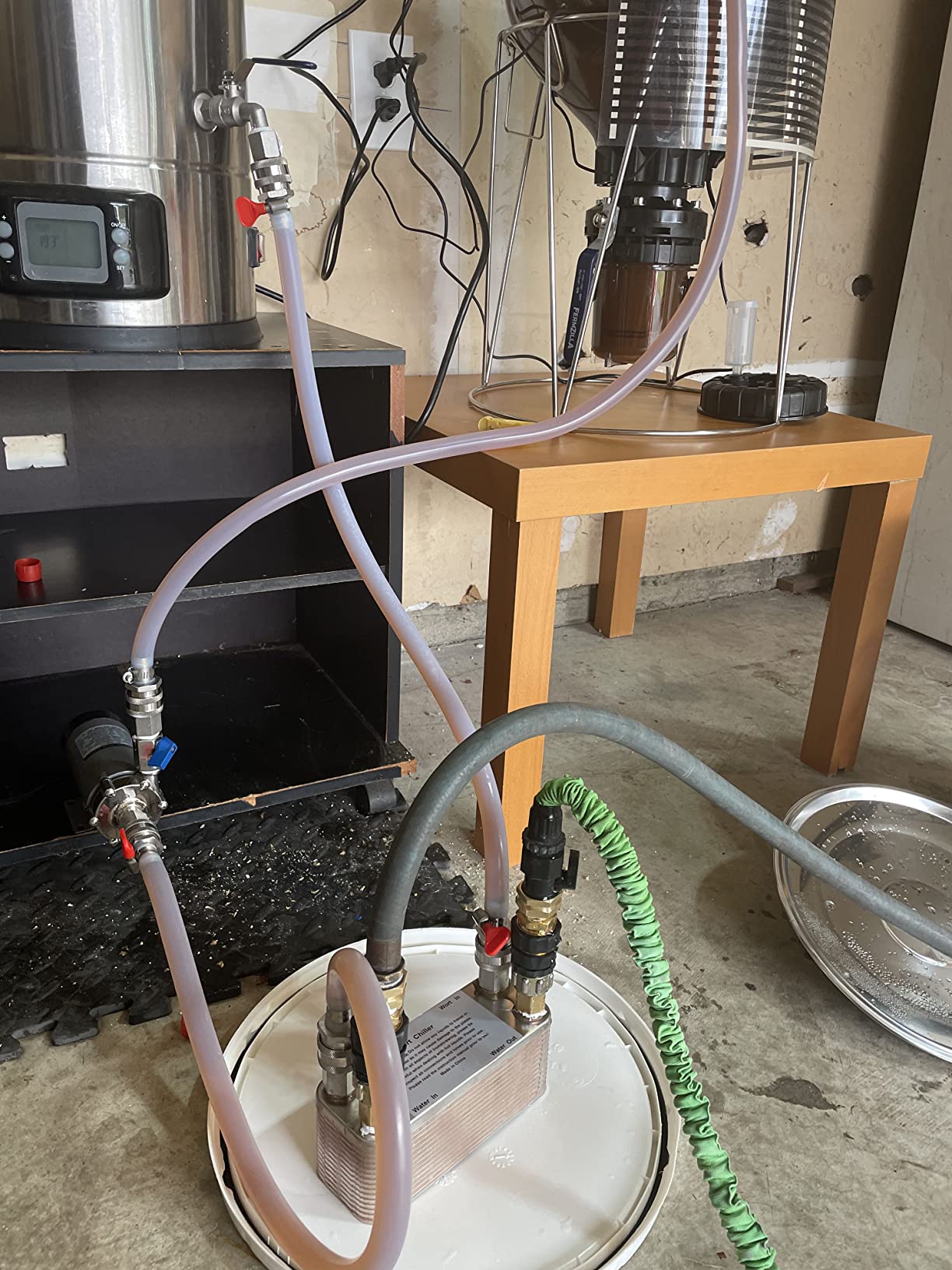

4. Ferroday 30-Plate Wort Chiller – Best Value for Most Brewers

The Ferroday 30-plate wort chiller is the one I recommend to most homebrewers who are making the jump from immersion chilling. With 75 verified reviews and a 4.6-star average, it has a proven track record that the newer models simply cannot match yet. Users consistently report cooling wort from a rolling boil down to 70 degrees in under 10 minutes, which is a massive upgrade from the 30 to 45 minutes you might spend with a copper coil.

This chiller uses 304 stainless steel plates brazed with 99.9 percent copper, which is the same construction approach as the more expensive Duda Energy models. The half-inch NPT thread connections are standard for homebrewing, so you should have no trouble finding compatible fittings. I found that pairing this with a basic March pump gave me excellent flow rates and fast cooling on 5-gallon batches.

Keep in mind that this Ferroday unit does not come with tubing or fittings, so you will need to budget for those separately. I also noticed that the NPT threads on my unit needed a few wraps of Teflon tape to seal completely. These are small hassles, but they are worth knowing about before your first brew day with a new plate chiller. Once set up properly, this thing performs beautifully.

Is 30 Plates Enough for Your Batch Size

For 5-gallon batches, 30 plates is plenty. You will see dramatic improvement over an immersion chiller and can reach pitching temperature in a single pass with good water flow and a pump. For 10-gallon batches, 30 plates still works but you may need to recirculate once or run slower water flow to get the temperature drop you want. If you primarily brew 10 gallons or larger, consider stepping up to a 40 or 60-plate model.

Preventing Clogs and Blockages

The number one complaint about plate chillers on homebrewing forums is clogging from hop pellets and trub. I always use a hop spider during the boil, and I run my wort through a coarse mesh screen before it enters the chiller. This simple step has prevented every clogging issue I might have had. Some brewers also use muslin hop bags, which work just as well for pellet hops.

5. MRbrew 30-Plate Wort Chiller – Budget Pick with Aeration Bonus

The MRbrew 30-plate chiller caught my attention because of one unique feature: it aerates your wort during the cooling transfer. This means you can skip the separate aeration stone and oxygen setup that many brewers use before pitching yeast. For brewers trying to keep their equipment list simple, this is a genuine advantage that saves time and money on brew day.

Performance-wise, the MRbrew delivers cooling speeds comparable to the Ferroday 30-plate. The 304 stainless steel plates with pure copper brazing in an oxygen-free furnace give you solid heat transfer. The low restriction design means it plays nicely with wort pumps, and the half-inch male NPT quick disconnect fittings make it easy to attach and detach from your brewing system.

One thing I want to flag is that new MRbrew units may have metal debris inside from the manufacturing process. Several reviewers mentioned this, and it is critical that you flush the chiller thoroughly with hot water and a cleaning solution before your first use. Once cleaned and broken in, this chiller performs reliably batch after batch.

Who Gets the Most from This Chiller

This MRbrew unit is ideal for 5-gallon batch brewers who want a plate chiller without spending a fortune. The built-in aeration is especially useful for newer brewers who have not invested in a separate oxygenation system. If you are brewing 5 to 7-gallon batches on a budget and want faster chilling than an immersion coil, this is your pick.

Setting Up for First Use

Before your first brew, run hot water through all four ports for at least five minutes to flush out any manufacturing residue. Follow that with a PBW or Oxiclean solution run for another five minutes, then rinse with clean hot water. Finally, run Star San through both directions and let it sit until you are ready to brew. This prep work takes about 20 minutes and ensures your first batch comes out clean and infection-free.

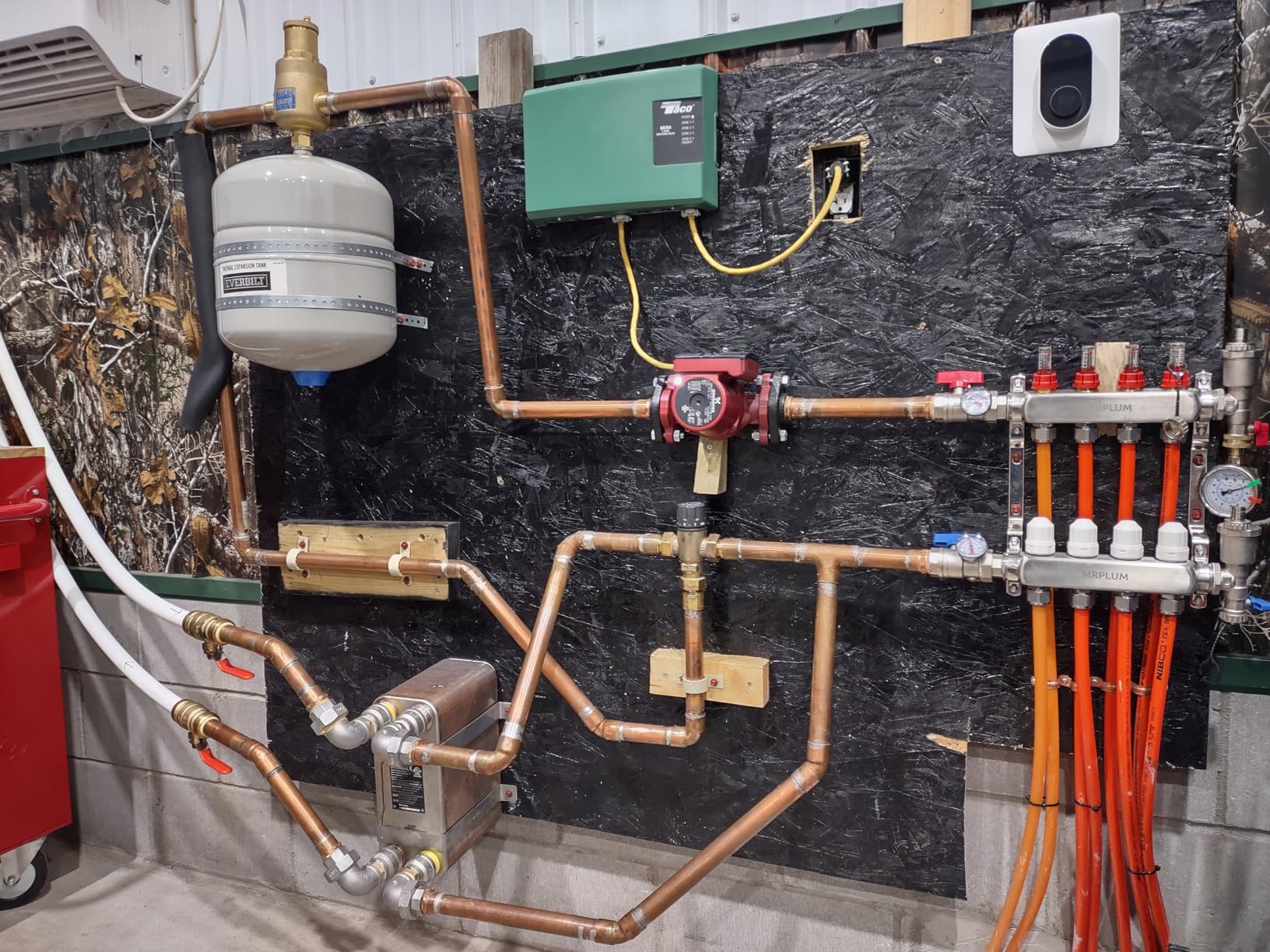

6. VEVOR 100-Plate Heat Exchanger – Commercial-Scale Power

The VEVOR 100-plate heat exchanger is in a different category than the other chillers in this roundup. This is a commercial-grade unit with 100 plates in an asymmetrical herringbone pattern, rated for up to 1260K BTU per hour. It is designed for floor heating, snow melting, and industrial applications, but homebrewers running very large batches or commercial nano-breweries can absolutely use it for wort chilling.

The 316L stainless steel construction is a step up from the 304 stainless used in most homebrew plate chillers. It offers superior corrosion resistance, which matters when you are running hot wort and cleaning chemicals through the unit repeatedly. The helium leak testing at the factory ensures there are no micro-leaks between the wort and water channels, which is critical for food safety.

The biggest challenge with the VEVOR is the 1.25-inch connection ports. Standard homebrew fittings are half-inch or three-quarter inch, so you will need reducing couplings and adapters to connect this to a typical brew system. Several Amazon reviewers mentioned that finding the right adapters was frustrating and expensive. At 33.4 pounds, this is also not a unit you will be moving around casually. It needs a permanent mount on a sturdy brew stand.

When This Much Cooling Power Makes Sense

The VEVOR 100-plate is worth considering if you are brewing 15-gallon or larger batches, running a small commercial operation, or doing back-to-back brew days where you need to chill multiple batches quickly. For a standard 5 or 10-gallon homebrew setup, this unit is massive overkill and the adapter costs alone would push your total investment well past any benefit you would see. Save this one for the big rigs.

Adapter and Fitting Requirements

Plan to spend additional money on 1.25-inch to half-inch or three-quarter inch reducing couplings, Teflon tape, and possibly custom hose assemblies. One reviewer reported spending nearly 50 dollars on fittings alone before the chiller was usable. If you are not comfortable plumbing large-diameter pipe fittings, you may want to have a local hardware store help you assemble the right adapter kit.

How to Choose the Right Plate Chiller for Your Setup

Picking the right plate chiller comes down to your batch size, your brewing system, and how much effort you are willing to put into cleaning. I have broken down the key factors below to help you make the right call.

Plate Count and Batch Size

More plates means more surface area for heat exchange, which translates to faster cooling. For 5-gallon batches, 30 plates is sufficient. For 10-gallon batches, look at 40 to 60 plates. For anything above 15 gallons, you want 60 plates or more. The Duda Energy 40-plate and Ferroday 60-plate models are the sweet spot for most 10-gallon all-grain brewers.

Keep in mind that more plates also means more internal volume, so you will lose a bit more wort to the chiller. With a 30-plate unit, you might lose 4 to 6 ounces. With a 60-plate unit, that number can double. Plan your recipe volumes accordingly.

Pump Requirements

Plate chillers work best with a wort pump. Gravity feed alone will not give you the flow rate needed for efficient cooling, especially with smaller plate chillers. A basic March pump or a Chugger pump will work with any of the models in this guide. If you do not already have a pump, factor that cost into your decision, because it makes a huge difference in performance.

Reddit users frequently mention this point. One brewer said they could not safely lift a full boil kettle to gravity feed through a plate chiller, which pushed them to invest in a pump. It is an additional expense, but it transforms your entire brew day workflow.

Connection Types: NPT vs Hose Barb

NPT threaded connections are the most common in homebrewing. They give you a secure, leak-free connection with Teflon tape, and you can find adapters at any hardware store. Hose barb connections are simpler because they slide directly onto tubing, but they require hose clamps and may not feel as solid. Choose based on what your current brewing plumbing looks like.

Cleaning and Clogging Prevention

All plate chillers require regular cleaning to prevent buildup inside the narrow channels. The most important rule is to clean immediately after each brew session while the wort residue is still wet. Run hot PBW solution through both directions, followed by a clean water rinse and a Star San flush before your next batch.

To prevent clogging, use a hop spider during the boil or bag your pellet hops in muslin bags. A whirlpool step before running wort through the chiller also helps keep trub and hop material out of the channels. Forum brewers on r/Homebrewing consistently say that a good whirlpool and hop filtration are the keys to trouble-free plate chiller operation.

Water Usage and Efficiency

One advantage of plate chillers over immersion chillers is water efficiency. Because of the counterflow design, you get more heat transfer per gallon of cooling water. You can further reduce water usage by recirculating the outlet water through a bucket of ice for the final temperature drop. This technique works especially well in summer when tap water temperatures run high.

Final Thoughts on the Best Plate Chillers

After testing these six plate chillers across multiple brew days, our top recommendation is the Duda Energy 40-Plate NPT Chiller for its professional build quality and five-minute cooling on 10-gallon batches. For most homebrewers looking for the best plate chillers without a premium price tag, the Ferroday 30-Plate delivers proven performance with 75 reviews backing it up. And if you are just getting started with plate chillers, the MRbrew 30-Plate offers solid cooling plus built-in wort aeration at a budget-friendly price.

Any of these plate chillers will dramatically cut your brew day time compared to immersion chilling. The key is matching the plate count to your batch size, investing in a good pump, and committing to a cleaning routine after every session. Happy brewing in 2026 and beyond.
