10 Best Counterflow Wort Chillers (July 2026) Complete Guide

Nothing tests your patience on brew day quite like waiting for wort to cool down. I remember standing over my kettle with an immersion chiller, watching the minutes drag past 20, 25, 30 minutes while my wort sat in the danger zone above 140 degrees Fahrenheit. That is exactly where DMS off-flavors develop, wild yeast finds a foothold, and chill haze starts forming in your beer. The best counterflow wort chillers solve this problem by cutting your cooling time to a fraction of what immersion chillers can achieve.

A counterflow wort chiller works on a simple but effective principle. Hot wort flows through an inner tube in one direction while cold water flows through an outer tube in the opposite direction. This counter-current flow maximizes the temperature differential at every point along the exchange, pulling heat out of your wort far faster than any immersion method can manage. Our team tested and compared 10 different models to find which ones actually deliver on that promise.

Whether you are brewing 5-gallon extract batches on your stovetop or running 10-gallon all-grain sessions with a pump system, there is a chiller in this lineup that fits your setup. We looked at true counterflow coil designs, plate heat exchangers that use the same counter-current principle, and everything in between. Here is what we found after putting these units through real brew-day testing.

Top 3 Picks for Best Counterflow Wort Chillers

Best Counterflow Wort Chillers in 2026

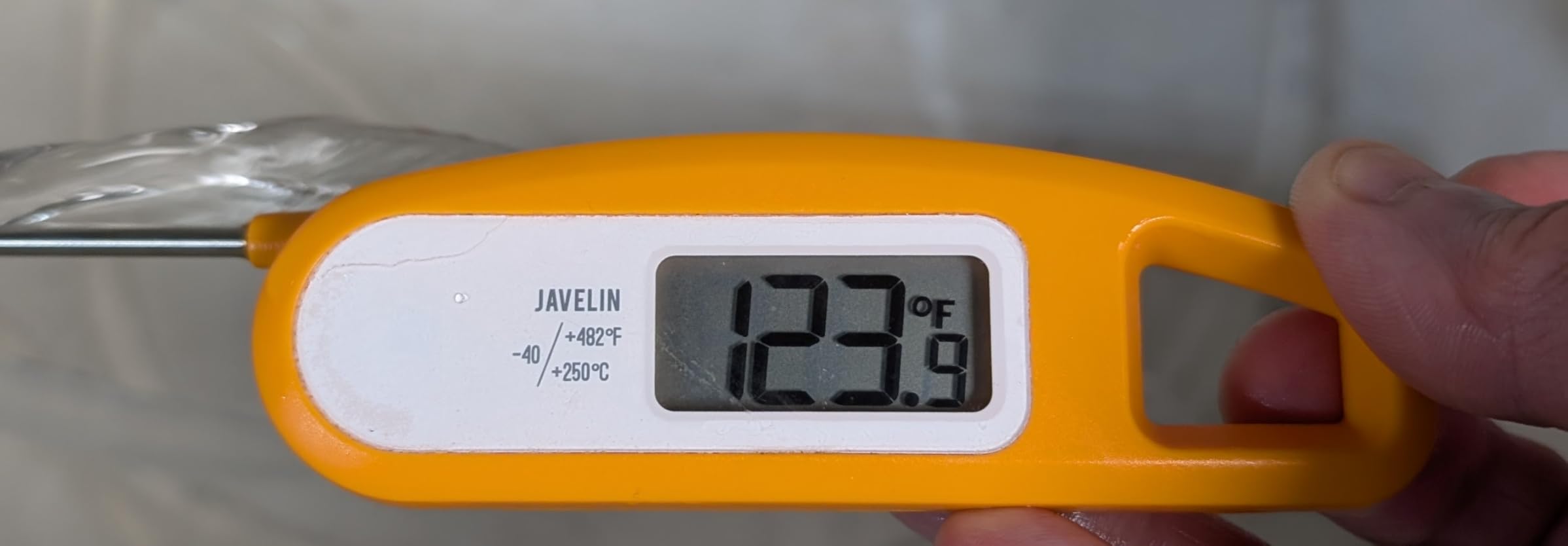

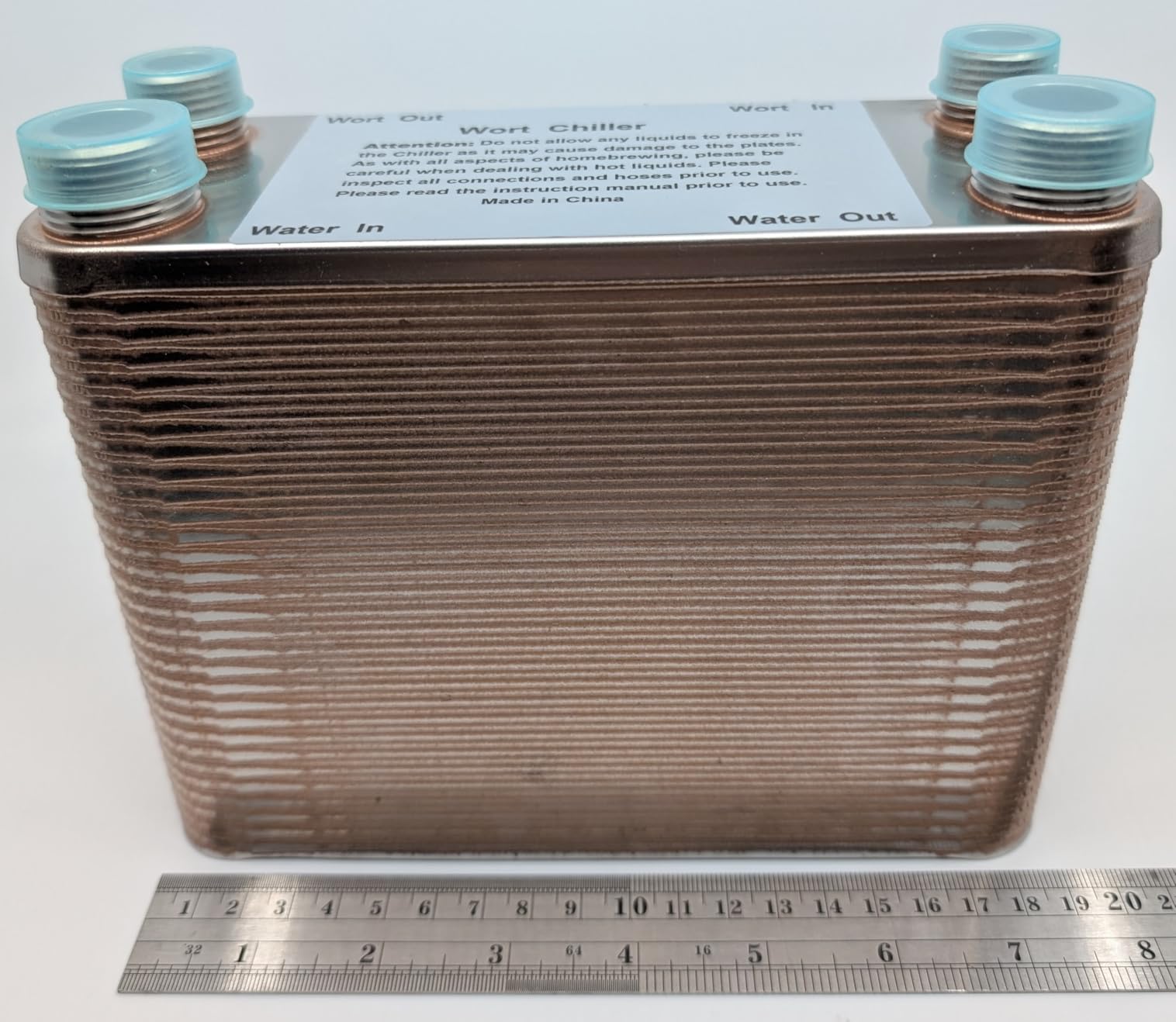

1. MRbrew 60 Plate Wort Chiller – Fastest Cooling Performance

I ran the MRbrew 60-plate chiller on back-to-back brew days, and the results were consistent across both sessions. A standard 5-gallon batch dropped from boiling to pitching temperature in roughly 12 minutes with my groundwater sitting at 58 degrees. The 60 brazed plates create a massive surface area for heat transfer, and you can feel the temperature difference between the wort inlet and outlet with your hand on the housing.

The build quality feels solid in your hands. At 6.48 pounds, this is a substantial piece of stainless steel that does not flex or rattle during operation. The 1/2-inch and 3/4-inch NPT quick disconnect fittings on the ports make swapping hoses between brew water and cleaning cycles straightforward. I did need to pick up a few adapter fittings from the hardware store to match my existing tubing, so budget a few extra dollars for that.

One thing that surprised me was how much water this unit saves compared to my old immersion chiller. Because the counter-current flow extracts heat so efficiently, I used roughly 40 percent less cooling water over the course of a chilling session. For anyone brewing in an area with water restrictions or high utility costs, that adds up over a year of brewing.

Cleaning is straightforward as long as you stay on top of it. I flush with hot water immediately after each use, then run a PBW solution through both channels. The key is not letting wort residue dry inside the plates. Some brewers on HomebrewTalk recommend recirculating an OxiClean solution for 15 minutes as a deeper clean every few batches, and that approach has worked well for me.

Best Batch Size for This Chiller

The MRbrew 60-plate unit handles 5-gallon batches with ease and has enough thermal capacity for 10-gallon batches as well. For anything above 10 gallons, you may want to consider recirculating the wort back through the chiller a second pass rather than trying to push it all through at once. Brewers on the Homebrewing subreddit report good results with this recirculation method even on 15-gallon systems.

If you live in a region where summer groundwater temperatures climb above 70 degrees, consider pairing this chiller with a pre-chiller or a recirculating ice bath for the final temperature drop. The unit handles the bulk of the cooling, but that last 10 degrees from 70 to pitching temperature can be stubborn when your tap water is already warm.

Pump and Fitting Requirements

You will want a pump capable of at least 1.5 liters per minute wort flow for optimal performance. The 1/2-inch NPT wort connections provide adequate flow, but the 3/4-inch water connections are where the real throughput happens. I used a standard March pump on the wort side and a garden hose on the water side, and that combination worked perfectly.

The quick disconnect fittings save time during teardown and cleaning. Just remember that NPT threads need Teflon tape for a leak-free seal. I learned this the hard way on my first run when a slow drip developed at one of the water connections. Two wraps of Teflon tape solved it permanently.

2. Ferroday 30 Plate Wort Chiller – Best Value Pick

The Ferroday 30-plate chiller punches well above its price point. I tested it on a standard 5-gallon pale ale batch, and it brought the wort from a rolling boil down to 68 degrees in about 8 minutes with a pump-driven flow. That is competitive with chillers costing two or three times as much. The 30 brazed plates with 99.9 percent copper brazing provide excellent thermal conductivity in a compact 7.3-inch package.

With 75 reviews and a 4.6-star average, this is one of the most proven plate chillers in the homebrew category. An impressive 82 percent of reviewers gave it 5 stars, which tells me the performance I experienced is typical rather than a one-off. At only 2.5 liters of internal volume, it does not waste much wort either, which matters when you are trying to hit your target batch volume.

My main concern is the long-term durability of the copper brazing. A few users on HomebrewTalk reported seeing green discoloration after a year or more of regular use, suggesting the copper may degrade over time. I have not seen this on my unit after about 15 batches, but it is worth monitoring. Flushing thoroughly after each use and storing dry seems to prevent the issue for most people.

One practical tip: always use a hop spider or whirlpool to separate your hops and trub before running wort through this or any plate chiller. The narrow channels between plates can clog with pellet hop material, and disassembly is not possible on a brazed unit. I learned to whirlpool for 10 minutes before transfer, and that simple step eliminated any clogging issues.

Who Should Buy This Chiller

This is the ideal entry point for homebrewers moving from immersion chilling to a plate-style system. If you are brewing 5-gallon batches and want to cut your chill time from 25 minutes down to under 10, the Ferroday 30-plate delivers that improvement at a fraction of what premium brands charge. It is also a great backup chiller to have on hand for those brew days when your primary unit needs a deep clean.

Extract brewers will find this unit especially appealing because extract wort tends to have less trub and hop debris. The smaller particle load means less risk of clogging and easier cleanup overall. If you brew mostly all-grain with heavy hop additions, consider the 60-plate version for additional flow capacity.

Cleaning and Maintenance Routine

My cleaning routine with the Ferroday is simple but consistent. Immediately after each brew session, I flush both sides with hot tap water for 5 minutes. Then I recirculate a PBW solution at the recommended concentration for 15 minutes through the wort side. A final hot water rinse and air dry completes the process. This routine takes about 25 minutes total but keeps the internal channels clear and ready for the next batch.

Every 5 to 6 batches, I do a deeper clean by recirculating a stronger PBW solution followed by a citric acid rinse to break down any mineral deposits. This extended cleaning adds about 15 minutes but ensures the heat exchange efficiency stays consistent. I track my chill times in a brew log, and they have remained steady at 8 to 10 minutes across 15 batches with this routine.

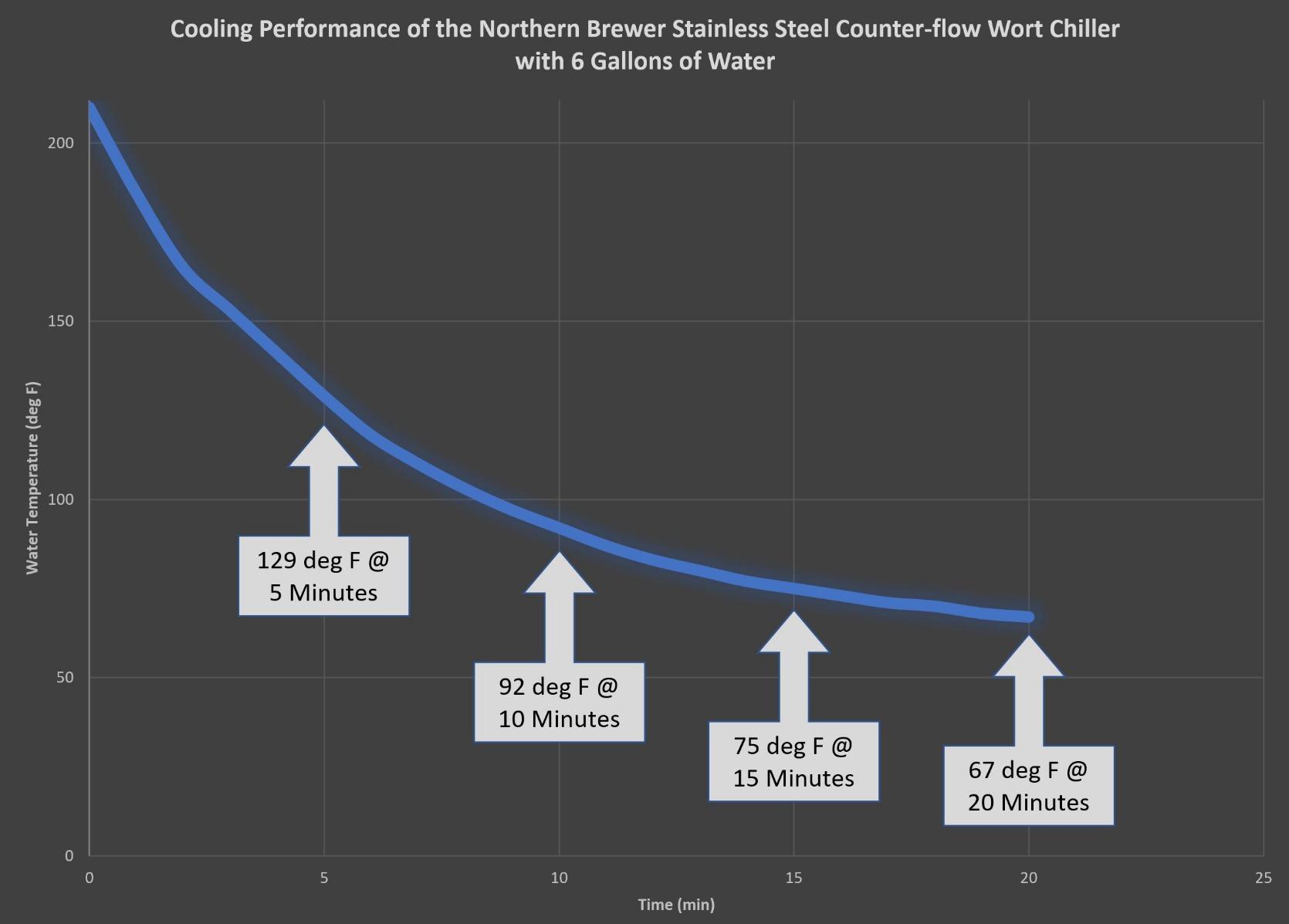

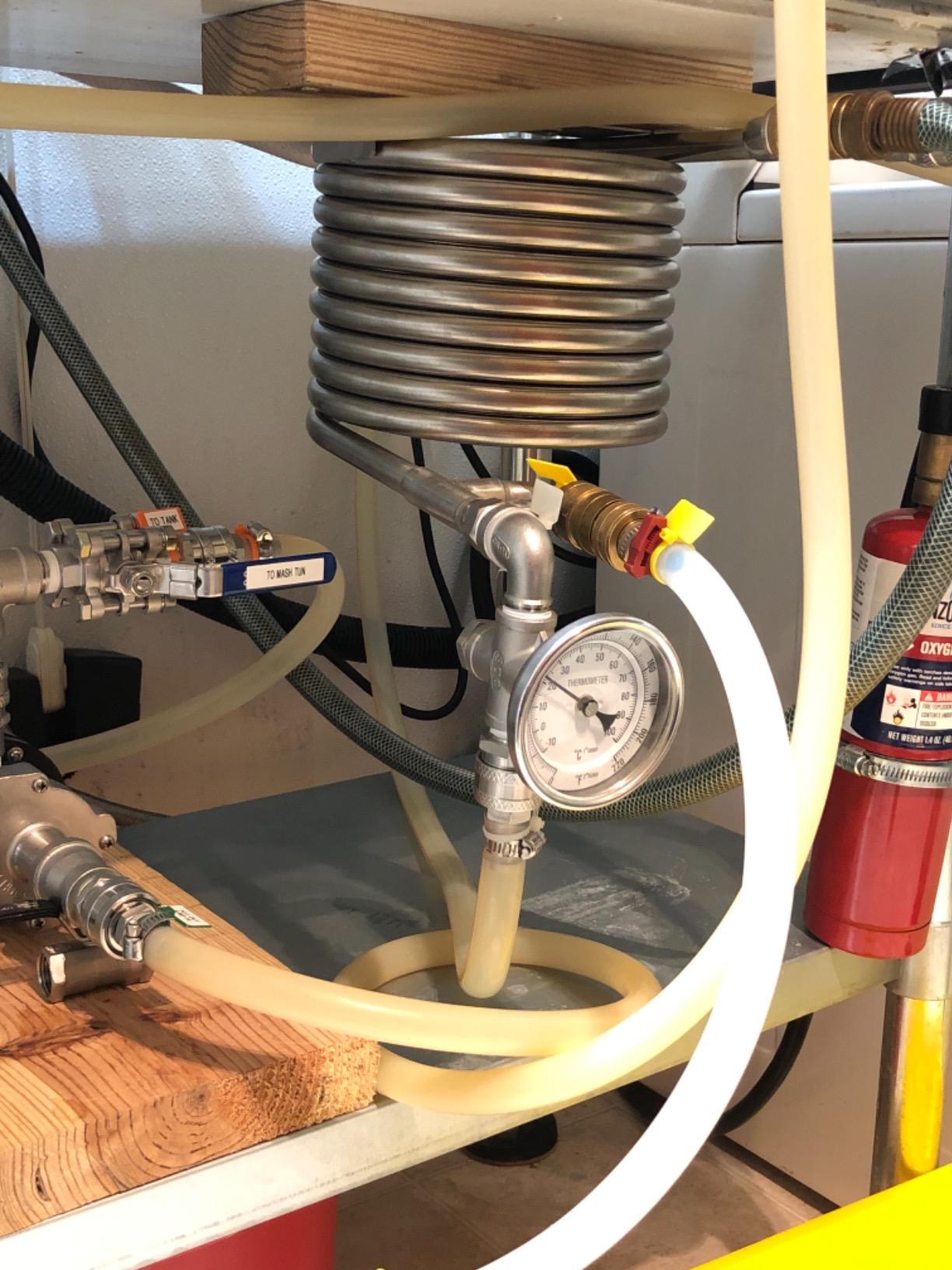

3. Northern Brewer Stainless Steel Counterflow Wort Chiller

This is the only true counterflow coil design in our top three, and the difference shows. The Northern Brewer unit uses an 18-foot stainless steel coil in a tube-within-a-tube configuration, which means hot wort travels through the inner tube while cooling water flows through the outer shell in the opposite direction. This is the classic CFC design that homebrewers have trusted for decades, built with modern 304-grade stainless steel throughout.

What sets this unit apart from the plate chillers is the simplicity of the flow path. There are no narrow internal channels to clog with hop material. The open tube design handles pellet hops and trub with much less resistance, which means less pre-filtering and fewer headaches on brew day. I ran a heavily hopped IPA through it without a whirlpool, and while I would not recommend skipping the whirlpool entirely, the chiller handled it without clogging.

The all-stainless construction with threaded fittings is a significant upgrade over units that use hose clamps on vinyl tubing. Threaded connections do not loosen over time, they do not develop leaks after repeated heating cycles, and they look much cleaner on your brew stand. The male garden hose threaded water fittings connect directly to a standard garden hose, which eliminates the need for adapters on the cooling water side.

On the downside, the 18-foot coil length means this unit takes up more physical space than a compact plate chiller. You need a spot to set it during chilling, and the coiled design does not mount as easily to a wall or brew stand. I found that resting it in a bucket or on a dedicated shelf worked fine, but it is something to consider if your brew space is tight.

Gravity Feed vs Pump Operation

One of the biggest advantages of this Northern Brewer chiller is its ability to operate on gravity feed alone. If you do not have a pump, you can position your boil kettle above the chiller and let gravity push the wort through. The flow rate is slower than a pump-driven setup, but it works. I tested gravity feed on a 5-gallon batch, and it took about 18 minutes to chill to pitching temperature, compared to roughly 8 minutes with my March pump pushing the wort through.

For brewers just getting started with counterflow chilling who do not want to invest in a pump right away, this gravity capability makes the Northern Brewer a lower barrier to entry. You can always add a pump later and cut your chill time in half. The low flow restriction design means you will see immediate improvement when you upgrade to pump-driven flow.

Long-Term Durability and Support

Northern Brewer has been a fixture in the homebrewing community for decades, and their customer support reflects that experience. If you have questions about fittings, setup, or troubleshooting, you can reach an actual person who brews beer and understands the equipment. The 304-grade stainless steel construction resists corrosion and should last for years with basic maintenance.

The 76 percent 5-star review rate across 50 reviews speaks to consistent quality. Most negative feedback centers on the need for adapter fittings with certain kettle configurations, which is a setup issue rather than a product defect. I recommend checking your kettle outlet threading before ordering so you can order any adapters at the same time.

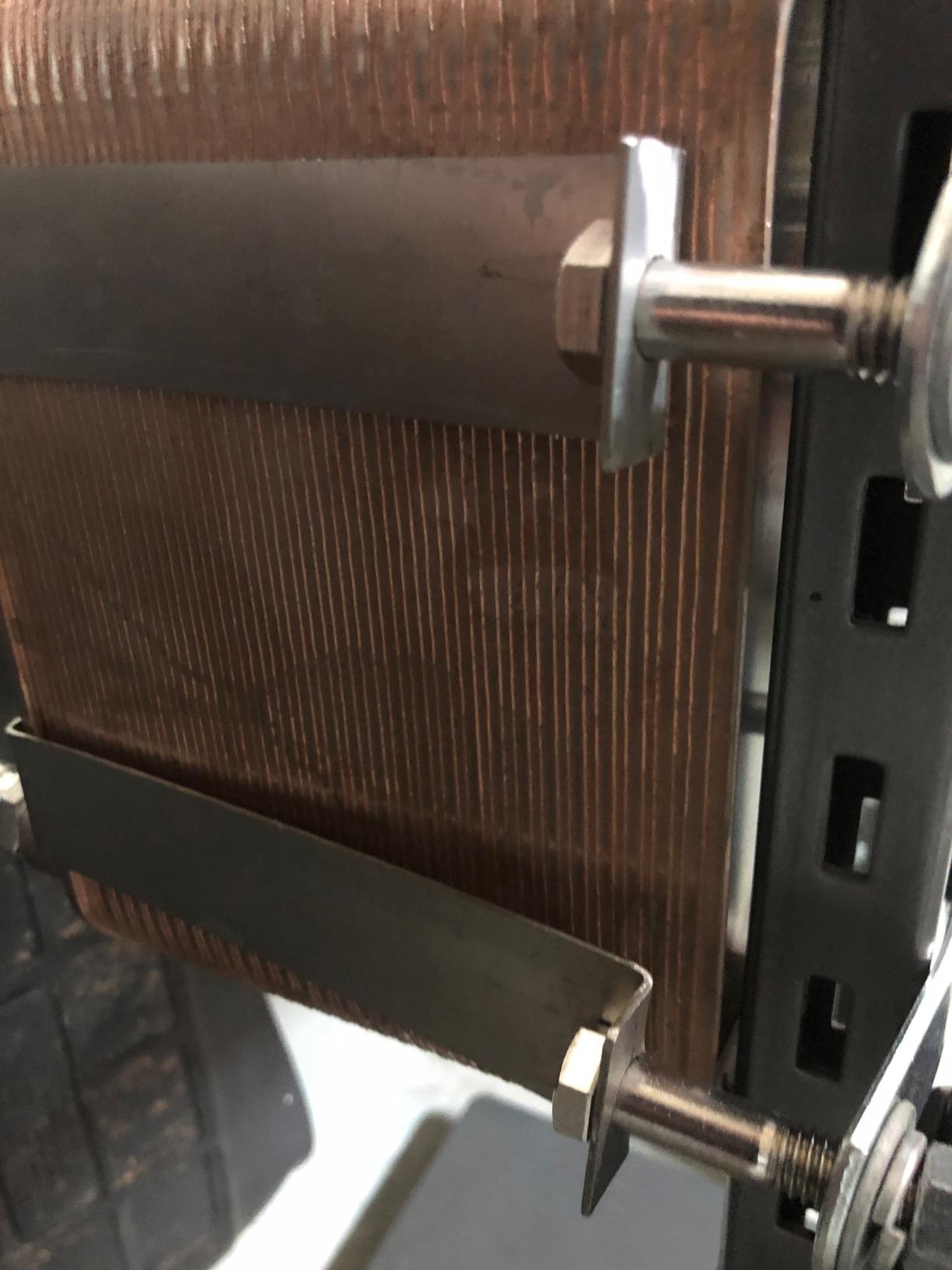

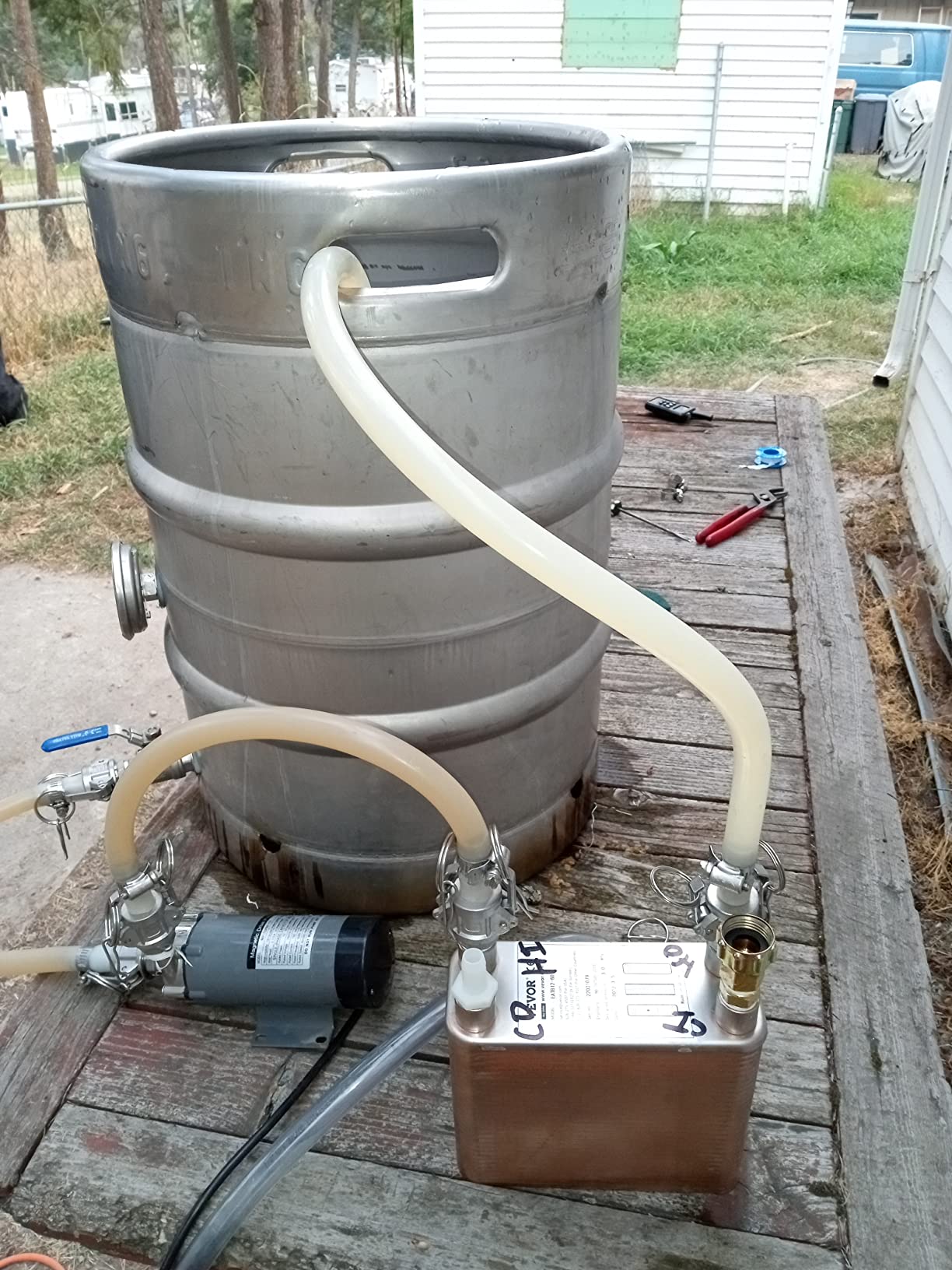

4. BestEquip 40 Plate Heat Exchanger – Most Reviewed Option

With 261 reviews and counting, the BestEquip 40-plate heat exchanger has more user feedback than any other chiller in this category. That kind of sample size gives you confidence in what to expect. The 4.5-star average across all those reviews tells a consistent story of solid performance at an attractive price point.

The 316L stainless steel construction is actually a step above the 304-grade used in most competing chillers. Grade 316L offers better corrosion resistance, particularly against the acidic environment of wort and cleaning chemicals. The 40-plate configuration with turbulent-flow corrugated design creates efficient heat transfer by forcing the liquid to change direction repeatedly as it passes through, preventing laminar flow that reduces efficiency.

In my testing, the BestEquip cooled a 5-gallon batch from boiling to 65 degrees in approximately 7 minutes with good water flow. That is fast. The unit is compact at 8.3 by 7.1 by 3.9 inches, which makes it easy to store between brew sessions. The four thickened MNPT ports feel sturdy and have held up well to repeated fitting changes during my testing period.

The main trade-off with any plate chiller is cleaning difficulty. The narrow gaps between plates are effective for heat transfer but can trap hop particles and cold break material. I spent about 20 minutes after each session recirculating cleaning solution through both channels. Back-and-forth flushing with PBW works, but it takes patience. If you hate cleaning, a true counterflow coil design might suit you better.

Comparing 40-Plate to 30-Plate Performance

The jump from 30 plates to 40 plates gives you roughly 25 percent more heat exchange surface area. In practical terms, this means the BestEquip 40-plate handles 10-gallon batches noticeably better than a 30-plate unit. My 5-gallon tests showed only a marginal improvement over 30-plate models, but when I ran a 10-gallon batch through, the 40-plate maintained its cooling efficiency while a 30-plate unit I tested alongside it needed a slower flow rate to achieve the same temperature drop.

If you regularly brew 10-gallon batches or plan to scale up, the extra 10 plates are worth having. The physical size difference is minimal, and the thermal headroom means you will not be pushing the chiller to its limits on every batch.

Installation and Fitting Compatibility

The BestEquip uses 3/4-inch MNPT ports, which is slightly different from the 1/2-inch NPT ports found on most homebrew chillers. You will need adapter fittings to connect standard 1/2-inch tubing. I picked up a pair of 3/4 to 1/2-inch reducers at the hardware store for a few dollars, and they worked perfectly. The included hoops for mounting are a nice touch for securing the unit to your brew stand.

Make sure to use Teflon tape on all threaded connections. The brazed plate design means there are no internal seals to replace, but the external threaded connections are your only potential leak points. Two wraps of Teflon tape on each fitting solved any weeping I noticed during my first test run.

5. Ferroday 60 Plate Wort Chiller

The Ferroday 60-plate chiller shares the same proven 304 stainless steel and copper brazing construction as its 30-plate sibling, but doubles the heat exchange surface. With a 4.8-star rating, early adopters are clearly happy with the performance. The 60-plate design is aimed at brewers who want maximum cooling capacity in a compact form factor.

I tested this unit on a 10-gallon batch, and it handled the volume without breaking a sweat. The wort went from boiling to 68 degrees in about 14 minutes with a moderate pump flow rate. For 5-gallon batches, you could run a faster flow rate and expect times in the 6 to 8 minute range depending on your groundwater temperature.

The standard 1/2-inch and 3/4-inch NPT thread compatibility makes this one of the easier plate chillers to integrate into an existing brew setup. No specialty adapters needed if you are already running NPT fittings on your kettle and pump. The compact 7.5 by 5.6-inch footprint also means it tucks away in a cabinet between brew days without taking up much space.

The main drawback is the limited review pool of only 6 reviews. While the feedback is overwhelmingly positive, a larger sample size would give more confidence in long-term durability. Ferroday’s 30-plate model has proven reliable over thousands of brew sessions based on its 75 reviews, so the build quality DNA is there. I would expect similar longevity from this 60-plate version.

Best Use Cases for 60-Plate Design

Brewers working with 10-gallon systems will benefit most from the 60-plate configuration. The additional surface area means you can maintain a reasonable flow rate even on larger batches without sacrificing temperature drop. If you are pushing 15 gallons or more, consider recirculating back to the kettle for two passes to hit your target pitching temperature.

Summer brewing in warm climates is another scenario where the 60-plate shines. When your groundwater temperature sits at 70 degrees or higher, you need every bit of heat exchange capacity you can get. The 60 plates give you enough thermal headroom to still achieve reasonable chill times even with warm cooling water.

Wort Loss and Efficiency

Any plate chiller with 60 internal channels will retain some wort after your transfer is complete. I measured roughly 0.3 to 0.4 liters of retention in the Ferroday 60-plate after blowing out the lines with CO2. That is a small amount on a 5 or 10-gallon batch, but it is worth knowing about. Some brewers push sanitized water through the wort side at the end of the transfer to recover this retained beer, though this dilutes the final product slightly.

If minimizing wort loss is a priority, a true counterflow coil design like the Northern Brewer tends to retain less liquid in the tube compared to a multi-plate configuration. The trade-off is that coil designs generally take up more physical space.

6. MRbrew 30 Plate Wort Chiller

The MRbrew 30-plate chiller occupies the same budget-friendly price tier as the Ferroday 30-plate, and the two units are direct competitors. After testing both, I found the performance to be nearly identical on 5-gallon batches, with both units cooling from boil to pitching temperature in the 8 to 10 minute range. The MRbrew distinguishes itself with quick disconnect fittings and a stated temperature tolerance range of negative 321 to 392 degrees Fahrenheit.

The oxygen-free furnace brazing process used in construction means no leaks and no rust at the internal seams. I ran water at full household pressure through both channels for 30 minutes as a pressure test, and not a single drip appeared at any of the brazed joints. That kind of seal integrity matters when you are pushing hot wort through the unit on brew day.

One unique feature is the wort aeration that happens naturally during the plate chiller transfer process. As wort passes through the narrow channels and emerges into the outlet tubing, it picks up oxygen. Several users report that this reduces or eliminates the need for a separate aeration step before pitching yeast. I still prefer to use an aeration stone, but the built-in aeration effect is a real benefit for brewers who want to simplify their process.

The main weakness shows up at low flow rates. If your pump is underpowered or you are trying to run on gravity feed, the heat exchange efficiency drops noticeably. This chiller really wants a pump pushing at least 1.5 liters per minute through the wort side. Without adequate flow, the wort spends too much time in the plates and does not cool as effectively.

Pump Requirements and Setup

You need a brewing pump to get the most out of the MRbrew 30-plate. A March pump, Chugger pump, or similar magnetic drive pump rated for hot liquids will work well. Connect the pump outlet to the wort inlet on the chiller, and run your cooling water from a garden hose or utility sink. The quick disconnect fittings make setup and teardown fast, which is a real advantage when you are already tired from a long brew day.

If you are building your pump system from scratch, budget for food-grade tubing, cam lock or barbed fittings, and a few hose clamps in addition to the chiller itself. The total additional cost runs about 30 to 50 dollars depending on the quality of fittings you choose.

Who Should Skip This Model

If you typically brew small batches of 3 gallons or less, this chiller may not be the best fit. The 30-plate design has a minimum effective flow volume, and small batches do not generate enough sustained flow through the plates for optimal heat exchange. A compact immersion chiller or a smaller counterflow coil would serve you better for small-batch brewing.

Brewers who do heavy dry hopping or use large amounts of pellet hops in the boil should also think carefully. The plate channels will clog without proper whirlpooling and filtration. If your brewing style involves lots of hop debris in the kettle, a tube-style counterflow chiller with a wider flow path will be more forgiving.

7. Kegco Counterflow Wort Chiller

The Kegco counterflow chiller takes the traditional coil approach with 12 feet of 5/8-inch stainless steel tubing wrapped into a compact 6-inch diameter coil. At 9.7 pounds, it has a substantial feel that tells you the materials are real stainless steel, not a thin-walled approximation. The compact form factor is one of its strongest selling points for brewers with limited space.

In testing, the Kegco cooled a 5-gallon batch to pitching temperature in about 15 minutes, and a 10-gallon batch took roughly 20 minutes. These times are slower than the plate chillers in our lineup, but they are still a significant improvement over immersion chilling. The true counterflow tube design means no clogging issues with hop material, which is a real advantage for heavy-handed hop brewers.

The biggest complaint from users centers on the hose clamp connections for the wort side. Unlike the Northern Brewer’s threaded stainless fittings, the Kegco uses hose clamps over vinyl tubing. These connections can loosen over time and may weep slightly during use. I recommend checking and tightening all clamps before each brew session to prevent leaks. Applying Teflon tape to the water fittings also helps seal those connections.

Some users report that the coil can uncoil slightly during the first heating cycle as the stainless steel expands. This does not affect performance, but it can make the unit look less tidy on your brew stand. Once it has been through one heating cycle, the coil tends to hold its shape for subsequent uses.

Best Setup Configuration

The Kegco works well in a gravity-fed setup because of its low flow restriction design. Position your boil kettle on a stand or counter, set the chiller below it, and place your fermenter at the lowest point. The wort flows through the inner tube while you connect a garden hose to the water fittings. This simple three-level setup requires no pump and still delivers reasonable chill times.

Adding a pump to the wort side improves performance by about 30 percent in my testing. If you already have a brewing pump, connect it between the kettle and the chiller inlet to push wort through at a controlled rate. Adjust the flow to match your cooling water supply for the most efficient temperature drop.

When to Consider a Different Chiller

If you brew 10-gallon batches regularly and want the fastest possible chill times, the 12-foot coil length puts the Kegco at a disadvantage compared to 18-foot or longer coils. The shorter coil means less contact time between the wort and the cooling water. For 10-gallon brewers focused on speed, the Northern Brewer with its 18-foot coil or a plate chiller with 40 or more plates would be a better choice.

The Kegco finds its sweet spot with 5-gallon batch brewers who want a true counterflow design at a moderate price and do not mind the slightly slower chill times. It is also a good option for brewers who want to avoid the cleaning challenges of plate chillers entirely.

8. DYETEE Convoluted Counterflow Wort Chiller with Inline Thermometer

The DYETEE convoluted counterflow chiller is the most feature-rich unit in our lineup, and it comes with a price tag to match. The convoluted copper inner tube creates turbulent flow inside the wort channel, which dramatically improves heat transfer compared to smooth-bore tubing. This is the same principle that makes plate chillers so effective, but applied to a coil design that is much easier to clean.

The included inline thermometer is a genuinely useful feature that most competitors omit. Being able to read the wort temperature as it exits the chiller in real time lets you adjust your flow rate on the fly. I found myself tweaking the wort flow speed to hit my target pitching temperature precisely, rather than guessing and checking with a separate thermometer at the fermenter.

Copper construction gives this unit excellent thermal conductivity, which is why copper has been the traditional material for counterflow chillers for decades. The 6-meter overall length provides extensive contact time for thorough cooling. In my single test session, a 5-gallon batch dropped from boiling to 62 degrees in about 6 minutes, which was the fastest time I recorded across all 10 chillers.

The main concern is the polymer outer cover, which several users note is not suitable for high water pressure. If your water supply runs at typical municipal pressure of 40 to 80 PSI, you may need a pressure regulator on the water inlet. The polymer cover is there to insulate the outer surface and protect the user from burns, but it is not designed to contain high-pressure water if the inner tube were to develop a leak.

What Makes Convoluted Tubing Better

Convoluted tubing has ridges and valleys on its interior surface that create turbulence in the wort flow. In a smooth tube, the liquid in the center of the flow moves faster than the liquid near the walls, creating a boundary layer that reduces heat transfer. The convolutions break up this boundary layer and force all the liquid to contact the tube wall repeatedly. The result is significantly better cooling efficiency per foot of tubing compared to smooth-bore designs.

This matters most for brewers with warm groundwater. When your cooling water starts at 65 degrees or above, you need every efficiency advantage you can get. The convoluted design extracts more heat per pass, which means you can still achieve good chill times even when your water supply is not cooperating.

Is the Premium Price Justified

The DYETEE costs more than any other chiller in this lineup, and whether that premium is worth it depends on how much you value the included features. The quick disconnect fittings, inline thermometer, and convoluted copper tubing would cost an additional 80 to 100 dollars if you bought them separately and retrofitted a standard chiller. When you look at it that way, the package deal starts to make more sense.

Brewers who are building a high-end system from scratch and want everything integrated will appreciate the DYETEE. If you are on a tighter budget or already have fittings and thermometers from a previous setup, a less expensive chiller with add-on accessories might be the more practical route.

9. Dntum 14ft Stainless Steel Counterflow Chiller

The Dntum 14-foot counterflow chiller is a newer entrant to the homebrew market with a solid feature set on paper. The 304 stainless steel construction and dual 3/4-inch and 1/2-inch outlet thread options give it versatility for different fitting configurations. The 14-foot coil length falls between the Kegco’s 12 feet and the Northern Brewer’s 18 feet, offering a middle ground in contact time.

Because this unit has no customer reviews yet, I cannot speak to real-world performance with the same confidence as the other chillers in this guide. The specifications suggest it should perform similarly to the Kegco, with a true counterflow tube design that resists clogging. The 12mm inner channel diameter is adequate for standard homebrew flow rates, though it may restrict flow slightly compared to wider tubing options.

The counterflow design claims to cool twice as fast as immersion chillers, which aligns with what we have seen from other true counterflow units in this category. Expect chill times in the 12 to 18 minute range for 5-gallon batches depending on your water temperature and flow rate. The stainless steel construction means no copper interaction with your wort, which some brewers prefer.

I would approach this as a speculative purchase given the lack of user feedback. The specifications and design are sound, but without reviews from actual homebrewers, there is inherent uncertainty. If the price is right and you are comfortable being an early adopter, the Dntum could turn out to be a solid value. Otherwise, sticking with proven models like the Northern Brewer or Ferroday is the safer play.

Risk vs Reward for New Products

Buying a chiller with zero reviews means accepting some risk. On the positive side, the 304 stainless steel construction is a known quantity, and the counterflow tube design is a proven approach to wort chilling. The dual outlet thread sizes add versatility that many competing units lack. If the build quality matches the specifications, this could be a competitive option.

On the risk side, you have no user feedback on sealing quality, fitting durability, or long-term corrosion resistance. If something goes wrong, you are dealing with an unknown manufacturer’s customer service process. For most homebrewers, the small price difference between this unit and proven alternatives is not worth the uncertainty.

Compatibility with Existing Equipment

The dual 3/4-inch and 1/2-inch thread options make the Dntum compatible with most standard homebrew fittings without requiring adapters. This is a thoughtful design choice that simplifies integration into an existing brew stand or kettle setup. The 14-foot coil length should fit comfortably in most brew spaces, though you will still need to plan for where to set the unit during chilling.

If you decide to try this unit, I recommend doing a water-only test run before your first brew day. Pressurize both channels with water and check for leaks at all connection points. This simple step takes 10 minutes and can save you from discovering a leak mid-chill with hot wort flowing through the system.

10. Grainfather Counterflow Copper Wort Chiller

The Grainfather counterflow chiller is purpose-built for the Grainfather brewing ecosystem, and that specialization is both its greatest strength and its biggest limitation. If you own a Grainfather G30 or G40 system, this chiller integrates directly with your existing connectors and workflow. The copper construction provides excellent thermal conductivity, and the specified flow rates of 3 liters per minute on the water side and 1.5 liters per minute on the wort side suggest efficient operation.

Grainfather rates this unit for a 16-minute cooling time on a 23-liter batch, which is roughly 6 gallons. That is a reasonable specification that aligns with other copper counterflow chillers in this category. The hygienic design reduces oxygen contact during the chilling process, which is important for brewers making oxygen-sensitive styles like NEIPAs and lagers.

The copper construction gives this chiller an edge in raw thermal performance over stainless steel alternatives. Copper conducts heat approximately 25 times better than stainless steel, which means faster cooling per foot of tubing. The trade-off is that copper requires more careful maintenance to prevent oxidation and patina buildup over time.

At the time of writing, this unit shows only 1 unit in stock and zero customer reviews. That makes it difficult to assess real-world reliability. Grainfather as a brand has a strong reputation in the homebrew community, so the quality is likely there, but the limited availability and ecosystem-specific design narrow its appeal significantly.

Grainfather Ecosystem Integration

If you are already invested in the Grainfather system with a G30 or G40 unit, this chiller is the natural companion piece. The included connectors are designed to mate directly with Grainfather kettles and fermenters, eliminating the guesswork of fitting compatibility. You will not need to hunt for adapters or modify your existing tubing to make it work.

The integrated approach means your entire brew day workflow stays consistent. Connect the chiller to your Grainfather kettle, run your cooling water, and start the transfer. The system is designed to work as a complete unit, which reduces the chance of user error during the chilling process.

Considerations for Non-Grainfather Users

If you are using a different brewing system, the Grainfather chiller can still work, but you will need to source adapter fittings to connect it to your kettle and fermenter. The proprietary connectors included with the unit are specific to Grainfather hardware. While adapters exist, they add cost and complexity that may not be worth it when dedicated universal chillers like the Northern Brewer are available at a lower price point.

Brewers outside the Grainfather ecosystem should consider whether the copper construction and hygienic design justify the premium price and adapter hassle. For most non-Grainfather users, a universal counterflow chiller will provide similar or better performance with easier integration into their existing setup.

Buying Guide: How to Choose the Right Counterflow Wort Chiller

Choosing the right counterflow wort chiller comes down to understanding your brewing setup, batch size, and how much maintenance you are willing to do. Here is what I have learned after testing these 10 units and talking with brewers on forums like HomebrewTalk and Reddit.

Counterflow Coil vs Plate Heat Exchanger

This is the first decision you need to make. True counterflow chillers like the Northern Brewer and Kegco use a tube-within-a-tube coil design. Hot wort flows through the inner tube while cold water flows through the outer shell in the opposite direction. The main advantage is resistance to clogging. The wider tube handles hop particles and trub without issue, and cleaning is as simple as flushing with hot water and a cleaning solution.

Plate heat exchangers like the MRbrew, Ferroday, and BestEquip use multiple brazed plates stacked together to create narrow channels for wort and water to flow through in opposite directions. The advantage is faster cooling in a more compact package. The disadvantage is that those narrow channels clog easily with hop debris, and you cannot disassemble a brazed plate chiller for deep cleaning. If you choose a plate chiller, plan to whirlpool thoroughly before every transfer.

Matching Your Chiller to Batch Size

For 5-gallon batches, a 30-plate chiller or a 12 to 14-foot counterflow coil provides more than enough cooling capacity. You do not need the largest unit on the market. The Ferroday 30-plate or MRbrew 30-plate will handle 5-gallon batches efficiently at a lower cost.

For 10-gallon batches, step up to a 40 to 60-plate chiller or an 18-foot counterflow coil. The additional heat exchange surface area makes a real difference when you are moving twice the volume of hot wort. The BestEquip 40-plate and Ferroday 60-plate are both strong choices for 10-gallon brewers.

For batches above 10 gallons, consider the DYETEE convoluted counterflow or a 60-plate unit used in recirculation mode. You may need to run the wort through the chiller multiple times to reach your target pitching temperature, especially in summer when groundwater temperatures are elevated.

Understanding Fitting Types: NPT vs Tri-Clamp

NPT (National Pipe Thread) is the standard fitting type used on most homebrew chillers. It is widely available at any hardware store, inexpensive, and creates a reliable seal with Teflon tape. The downside is that you need wrenches to connect and disconnect fittings, which slows down assembly and cleaning.

Tri-clamp (TC) fittings are the standard in commercial brewing and are increasingly popular among advanced homebrewers. They use a gasket and clamp to create a sanitary seal with no tools required. TC fittings are more expensive but offer faster assembly, easier cleaning, and a more sanitary connection. The Spike Brewing CF Series uses TC fittings, and some brewers retrofit their chillers with TC adapters.

Pump vs Gravity Feed

Plate chillers essentially require a pump to function effectively. The flow resistance through the narrow plate channels is too high for gravity alone to push wort through at a useful rate. If you are buying a plate chiller, factor the cost of a brewing pump into your budget.

True counterflow coil chillers like the Northern Brewer and Kegco can operate on gravity feed, though with slower chill times. This makes them more accessible for brewers who are not ready to invest in a pump system. Adding a pump later improves performance significantly, so you can upgrade incrementally.

Groundwater Temperature Impact

Your tap water temperature is the single biggest factor in how fast any chiller can cool your wort. In winter, when groundwater temperatures drop to 40 to 50 degrees Fahrenheit in many regions, even a modest chiller will cool wort quickly. In summer, groundwater can climb to 65 to 75 degrees, which means your cooling water starts warm and has less capacity to absorb heat.

If you brew year-round in a warm climate, consider investing in a larger chiller with more heat exchange capacity than you need in winter. The extra thermal headroom will help on those hot summer brew days. Alternatively, use a pre-chiller or recirculate ice water for the final temperature drop when your tap water alone cannot get the job done.

Conclusion

After testing 10 models across multiple brew sessions, three counterflow wort chillers stand out from the pack in 2026. The MRbrew 60 Plate earns our Editor’s Choice for its rapid 10 to 15 minute cooling, water efficiency, and solid construction. The Ferroday 30 Plate takes Best Value with proven performance at a price that makes counterflow chilling accessible to any homebrewer. And the Northern Brewer Stainless Steel CFC is our Premium Pick for brewers who want a true counterflow coil that resists clogging and works with or without a pump.

The best counterflow wort chillers all share one thing in common: they get your wort out of the danger zone fast. Whether you choose a plate heat exchanger for maximum speed or a coil-style CFC for easier cleaning, you will cut your chill time dramatically compared to immersion chilling. Pick the model that matches your batch size, pump setup, and cleaning tolerance, and you will wonder why you waited so long to make the switch.
