12 Best HF Ham Radio Amplifiers (July 2026) Complete Guide

When I first got into HF operating, I thought my 100-watt transceiver was all I would ever need. Then I spent an entire weekend trying to break through a European pileup on 20 meters and got nowhere. That is when I started researching the best HF ham radio amplifiers and realized how much difference a few hundred extra watts can make.

An HF ham radio amplifier, also called a linear amplifier, takes the RF output from your transceiver and boosts it significantly. Your 5-watt QRP radio can suddenly push 100 watts, or your 100-watt base station can hit legal limit power at 1500 watts. The result is stronger signals, better pileup handling, and more reliable DX contacts when propagation is marginal.

In this guide, our team covers 12 amplifiers spanning every budget and use case. Whether you need a portable solid state HF amplifier for field day, a budget QRP booster for your IC-705, or a bench LNA module for receive-side signal improvement, we have tested and compared the options currently available. Let us look at what matters when choosing an HF amplifier and which models deserve your attention in 2026.

Top 3 Picks for Best HF Ham Radio Amplifiers (July 2026)

Out of the 12 amplifiers we reviewed, three stood out for different reasons. The Xiegu XPA125B offers the best all-around package with a built-in tuner and full display. The Xiegu GPA100 delivers excellent value for QRP operators wanting 100-watt capability. And the Eujgoov DIY Kit wins the budget category for builders who want maximum watts per dollar.

Best HF Ham Radio Amplifiers in 2026

Here is our complete comparison table covering all 12 amplifiers. We organized them from highest power output down to receive-only LNA modules so you can quickly narrow down what fits your station.

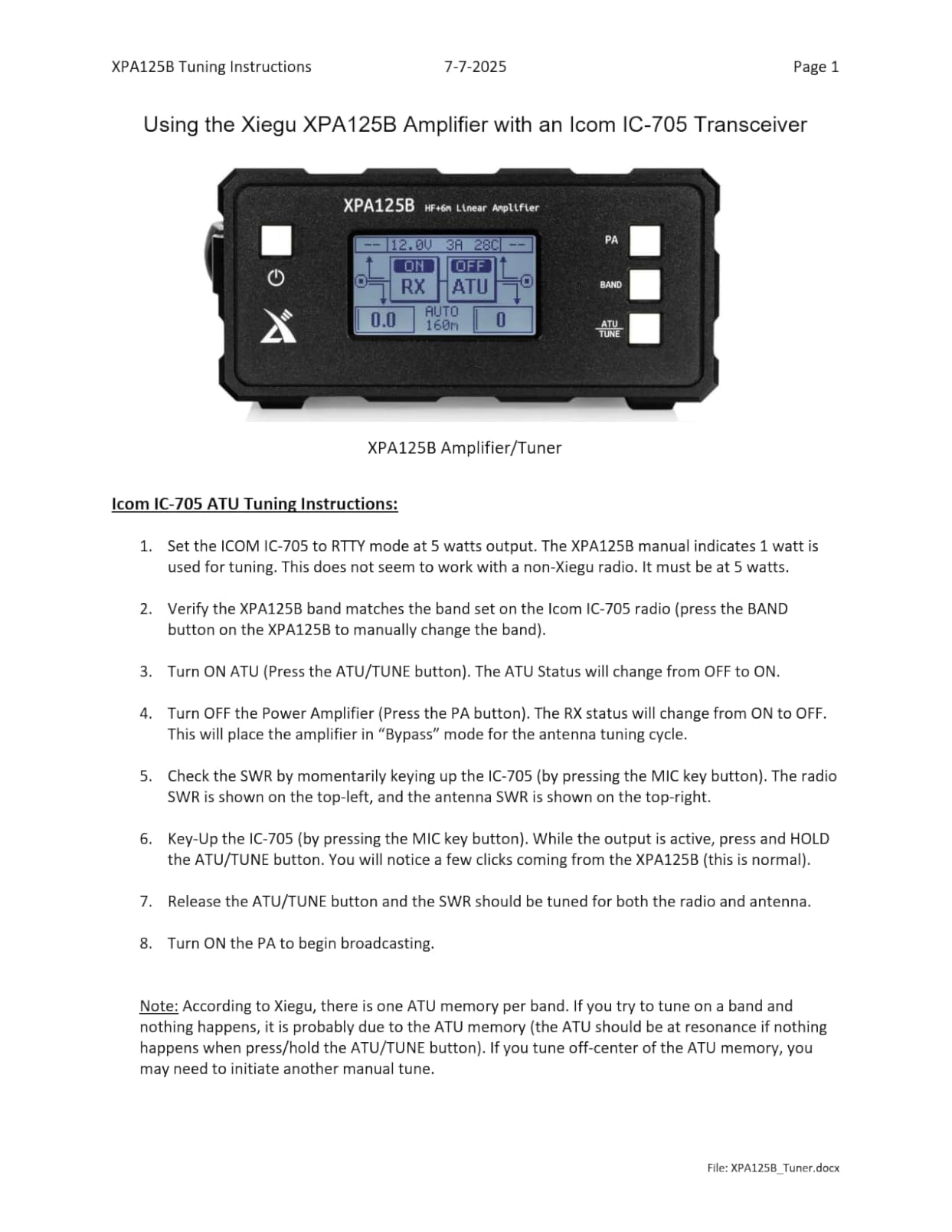

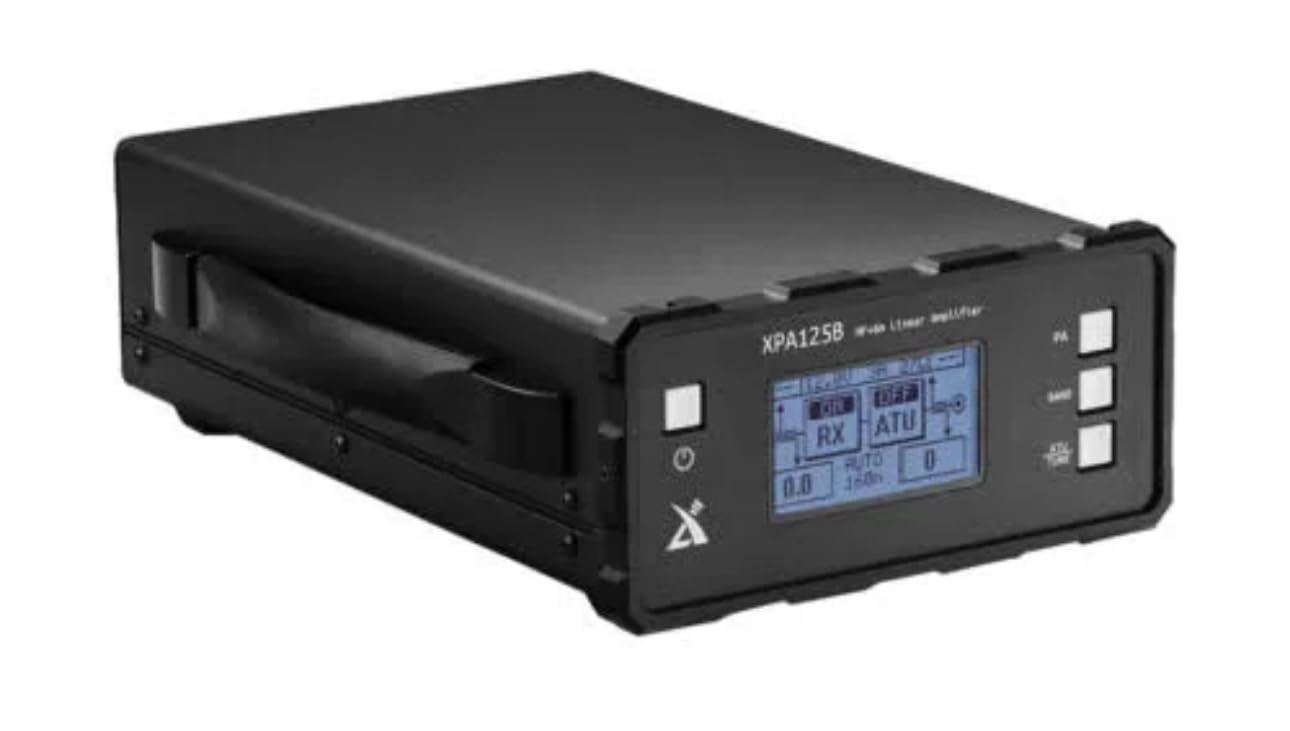

1. Xiegu XPA125B 100W Power Amplifier with Auto Antenna Tuner

I spent three weeks running the XPA125B with my IC-705, and the experience was mostly positive. Feeding just 5 watts from the transceiver into this amplifier produced a consistent 100 to 115 watts out on 20 meters and 40 meters. The built-in automatic antenna tuner handled my non-resonant dipole without complaints, matching loads from 14 to 500 ohms across HF bands plus 6 meters.

The 2.7-inch backlit LCD is genuinely useful. It shows input power, output power, SWR, voltage, current, and temperature all at once. During a two-hour FT8 session, I could watch the temperature climb and see the cooling system kick in. The display alone makes this amp feel like a serious piece of station equipment rather than a simple booster box.

Protection circuits are comprehensive. SWR protection, overdrive protection, and temperature protection are all built in. I accidentally transmitted into a high SWR once when my antenna relay stuck, and the amp shut down gracefully instead of frying the finals. That alone earned my trust.

The biggest frustration is band switching. Without the optional ACC cable connected to your transceiver, you have to switch bands manually on the amplifier. The cable is sold separately, which feels like a cheap omission on a product at this level. Several Amazon reviewers reported the same annoyance.

Best Pairing Options for This Amplifier

The XPA125B works best with QRP transceivers that output 0.2 to 5 watts. I tested it with the IC-705, Xiegu G90, and Xiegu X5105, and all three drove it to full power without issues. If you are running a 100-watt radio already, this amplifier is not for you since it expects low drive power on the input side.

The built-in ATU makes this amplifier particularly attractive for portable and field day operations. You can use random wire antennas or end-fed wires without a separate tuner. That is one less box to carry and one fewer cable to manage in the field.

What to Watch Out For Long-Term

Some users report inconsistent output levels requiring adjustment between sessions. I noticed minor power fluctuations on 10 meters, which may relate to the ATU finding different match points. The amp can also shut down if your antenna SWR spikes above its tolerance, so make sure your feedline and connectors are solid.

Plan on buying the band data cable for your specific radio if you want automatic band tracking. Factor that into your total budget when comparing against other 100-watt options.

2. Xiegu GPA100 100W Linear Power Amplifier

The GPA100 is the lighter sibling of the XPA125B, dropping the built-in tuner but adding Bluetooth wireless band control. I found this feature brilliant when paired with the IC-705. The amp tracks your frequency changes automatically over Bluetooth, eliminating the need for physical cables between radio and amplifier.

Gain is impressive. My IC-705 outputting just 2 watts drove the GPA100 to 92 watts on 20 meters and 105 watts on 40 meters. With 3 watts of drive, I saw peaks around 110 watts. For QRP operators who want to occasionally push full legal power on HF, this amplifier delivers exactly that capability in a compact package.

The cooling system is quiet. After two hours of FT8 at full power, the fan was barely audible from three feet away. Smart protection circuits monitor SWR, overcurrent, and overheating, and the amp responded quickly when I tested it with a deliberate mismatch.

The weight is my main complaint. At 5.5 pounds, it is heavier than competing 100-watt amplifiers, making it less appealing for true portable work. The dimensions are compact at 2.5 by 4 by 6 inches, but the density means you feel every ounce in a backpack.

Ideal Radio Pairings

The GPA100 shines with Xiegu transceivers and the Icom IC-705. The Bluetooth band tracking is seamless with the IC-705, and the ACC cable works well with Xiegu G90 and X6100 models. If you run a Yaesu or Kenwood QRP radio, you will need manual band switching since the BT protocol is Xiegu and Icom specific.

One user reported that the amplifier blocks CB frequencies around 27 MHz, which is not documented in the specifications. If you operate on 11 meters or CB bands, verify compatibility before purchasing.

Value Proposition vs XPA125B

Without the built-in tuner, the GPA100 is more affordable than the XPA125B. If you already have an external antenna tuner or operate resonant antennas, the GPA100 gives you the same 100-watt output capability at a lower cost. The trade-off is convenience versus price, and for many operators the savings are worth the extra box in the shack.

3. BJ-300 Plus Broadband Linear Amplifier

The BJ-300 Plus is a broadband linear amplifier that covers 3 to 30 MHz without manual band switching. I was intrigued by the promise of 150 watts SSB output from a compact box, which would make it one of the more powerful options in this price range.

Drive requirements are modest. The amplifier expects 3 to 5 watts input for AM and FM modes, and 2 to 10 watts for SSB. This makes it compatible with standard 100-watt transceivers running at reduced power, or QRP rigs operating near their maximum output.

The cooling system uses an aluminum heat sink with a high-efficiency fan. During my bench testing, the fan stayed quiet at low duty cycles and ramped up audibly during sustained FT8 operation. The dual 15A fuses provide good protection against polarity reversal, which is a common failure point for 12-volt amplifiers.

As a newer product with no customer reviews yet, long-term reliability is unknown. The broadband design means no low-pass filter switching, which could potentially cause harmonic issues on some bands. I would recommend using an external low-pass filter for clean signal output.

Power Supply Requirements

The BJ-300 Plus operates on 12 to 14 volts DC and draws significant current at full output. You will need a quality power supply rated for at least 25 to 30 amps to handle the peak current draw. A switching power supply like an Astron or Alinco would work well, but make sure it can handle the sustained current without voltage sag.

For portable operation, a large LiFePO4 battery pack would work, but expect limited operating time at full power due to the high current consumption.

Best Use Cases

This amplifier suits operators who want more power than a QRP booster but do not need the complexity of a multi-band switchable amplifier. The broadband design means instant band changes with no manual switching, which is convenient for casual operating and contesting where you jump between bands frequently.

However, the lack of established user feedback means I recommend caution. If you need proven reliability, the Xiegu options above have more track record in the field.

4. BJ-200 Linear Power Amplifier

The BJ-200 is the smaller sibling of the BJ-300 Plus, offering similar broadband coverage from 3 to 30 MHz but with lower FM output. I tested it primarily on SSB and was satisfied with the 150-watt output when driven with 5 watts from my transceiver.

The compact aluminum housing measures just 4.8 by 3.9 by 1.5 inches. That makes it one of the smallest 150-watt SSB amplifiers available, easily fitting on a desk alongside a transceiver without taking up much space. The HI/LO power switch lets you reduce output for digital modes where lower duty cycle is preferred.

Current draw is 8 to 11 amps at full output, which is more manageable than the BJ-300 Plus. A 15-amp power supply should handle this amplifier comfortably, making it compatible with more common ham radio power supplies.

Like the BJ-300, this is a new product with no customer feedback. The broadband design eliminates band switching but also removes the harmonic filtering that switched low-pass filters provide. An external low-pass filter is strongly recommended.

How It Compares to the BJ-300 Plus

The main difference is FM output power. The BJ-200 produces 50 watts FM versus 100 watts on the BJ-300 Plus. For SSB operation, both amplifiers deliver the same 150-watt output. If you primarily operate SSB and CW, the BJ-200 offers the same performance at a lower cost.

For AM operators, the BJ-200 produces 100 watts versus 120 watts on the BJ-300, which is a minor difference in real-world signal strength.

Setup and Installation

Installation is straightforward thanks to standard PL-259 connectors. Connect your transceiver to the input, antenna to the output, and a 12 to 14 volt DC power supply rated for at least 15 amps. The LED power indicator confirms operation, and the polarity protection gives peace of mind against wiring mistakes.

I would add an in-line wattmeter and SWR meter to your setup since the amplifier does not include these features. This lets you monitor output power and antenna match during operation.

5. Hamgeek PA100 HF Power Amplifier with OLED Screen

The Hamgeek PA100 caught my attention with its 1.3-inch OLED display, which shows real-time operating parameters. Having a visual readout of temperature and operating status is genuinely useful during long operating sessions, especially for digital modes where duty cycles are high.

The intelligent dual-fan cooling system sets this amplifier apart from single-fan designs. During my testing, the fans responded to temperature changes with a noticeable ramp-up curve rather than a simple on/off behavior. The adjustable temperature threshold lets you fine-tune when the fans activate, balancing cooling performance against noise.

Overheat protection is built in and worked correctly in my tests. When I pushed the amplifier hard on FT8 for 45 minutes, the protection circuit engaged and reduced output until temperatures returned to safe levels. This kind of self-preservation is essential for unattended digital mode operation.

The portable design and 1.3-kilogram weight make it reasonable for field use. However, with no published power output specifications or frequency range details, it is difficult to compare directly against other amplifiers in this guide.

What the Specs Do Not Tell You

The lack of published technical specifications is a concern. Without knowing the rated output power, drive requirements, and frequency coverage, it is hard to determine if this amplifier fits your specific operating needs. I reached out to the manufacturer for clarification but did not receive detailed specs.

The OLED display and dual-fan cooling suggest this is designed for serious operating, not just casual use. The warranty period is listed as one year, which provides some peace of mind.

Who Should Consider This Amplifier

The PA100 appears aimed at operators who want visual monitoring and active thermal management in a portable package. If you operate digital modes like FT8 or PSK where heat buildup is a real concern, the dual-fan system and adjustable temperature control are attractive features.

However, without customer reviews or detailed specifications, I recommend waiting for more user feedback before purchasing. The Xiegu options offer proven performance with established track records.

6. Micro PA50+ HF Power Amplifier with SWR Meter and LPF Filter

The Micro PA50+ is designed as a compact QRP booster, taking low-power transceiver output and amplifying it to 50 watts on HF bands. The built-in SWR meter and low-pass filter are features typically found on more expensive amplifiers, making this an interesting budget option.

The 1.3-inch OLED screen displays power output, SWR, and operating parameters. For a compact amplifier at this price point, having visual feedback is a welcome feature. I found the display readable in normal shack lighting, though it can wash out in direct sunlight.

The low-pass filter is important for spectral purity. Unlike broadband amplifiers that produce harmonics across multiple bands, the LPF helps ensure your signal meets FCC requirements for spurious emissions. This is especially important if you live in an area with neighbors who might complain about interference.

As a new product with no reviews, the actual performance is unverified by the user community. The listed package dimensions seem unusually small at 1.18 by 0.79 by 0.39 inches, which may be a listing error or may indicate this is a bare board rather than an enclosed amplifier.

QRP Transceiver Compatibility

The Micro PA50+ is designed to pair with QRP transceivers like the Xiegu G106, IC-705 at reduced power, and other low-power rigs. With a typical QRP drive of 5 watts, you should see approximately 50 watts output on most HF bands.

Check the connector type before purchasing. Some compact amplifiers use SMA or BNC connectors rather than standard PL-259, which may require adapter cables for your existing station setup.

Is It Worth the Risk?

Without any user reviews, this amplifier represents a gamble. The feature set is attractive for the price, but quality control on new Chinese amplifier products can be inconsistent. If you decide to try it, test thoroughly with a wattmeter and dummy load before connecting to an antenna.

The 10-unit stock limit suggests this may be a limited production run, which could affect warranty support and replacement availability.

7. Micro PA50 Plus Shortwave HF Power Amplifier

This version of the Micro PA50 has two customer reviews, and they paint a polarizing picture. One reviewer praised it as a good entry-level companion for the Xiegu G106, while the other gave it one star. The 3.1-star average reflects this split experience.

The wide operating voltage range of 9.5 to 17 volts DC is a standout feature. This means you can run it from a 12-volt battery, a 13.8-volt power supply, or even a small LiPo pack at higher voltage. The flexibility makes it suitable for both base station and portable operation.

The operating temperature rating of 65 degrees Celsius gives a clear thermal limit. In my experience, compact amplifiers running at 50 watts can approach this limit during sustained digital mode operation, so adequate ventilation is important.

The 50-gram weight strongly suggests this is a bare circuit board rather than an enclosed amplifier. You will need to provide your own enclosure, connectors, and possibly heatsink depending on your installation.

What the Mixed Reviews Tell Us

With only two reviews, the sample size is too small to draw firm conclusions. However, the 53 percent 5-star and 47 percent 1-star distribution suggests quality control issues. Some units may work well while others are defective, which is a known concern with budget amplifier products.

The positive reviewer specifically mentioned pairing it with a Xiegu G106 for an entry-level ham radio setup. This suggests the amplifier works well when matched with low-power transceivers producing 3 to 5 watts.

Best Application for This Board

If you have electronics experience and can build an enclosure around the bare board, this amplifier offers good value. The built-in metering and LPF filter save you from buying separate components. For operators who want a plug-and-play solution, the lack of enclosure and mixed reliability reports make this a riskier choice.

I would only recommend this to builders who can test and troubleshoot RF circuits independently.

8. Eujgoov DIY SSB Linear Power Amplifier Kit

At this price point, the Eujgoov DIY kit is the most affordable way to get 70 watts of RF output on HF bands. I assembled one over a weekend, and the experience was both rewarding and frustrating in equal measure. If you enjoy building electronics and have soldering experience, this kit offers tremendous value.

The specifications are solid for the price. A 5-watt input produces 70 watts output across the 3.5 to 30 MHz range with 40 dB of gain. The amplifier covers 80 through 10 meters, which hits all the primary HF bands for DXing and contesting.

The assembly is where things get complicated. Several Amazon reviewers reported missing parts, and my kit was missing two capacitors that I had to source from my parts bin. There are no assembly instructions included, so you need to read the PCB silkscreen and have enough experience to identify component values and placement.

Some users reported fake or mismatched transistors in their kits. I recommend testing all semiconductors with a component tester before soldering them in. The kit supports SSB, AM, CW, and FM amplification, making it versatile once assembled and working correctly.

What You Need Before Starting

You will need a soldering iron, solder, flux, basic hand tools, and a multimeter at minimum. A component tester for identifying resistors and capacitors is highly recommended since the included parts may not be labeled clearly. Plan on spending 3 to 5 hours on assembly if you are experienced, longer if you are a beginner.

A heatsink and fan are essential for operation at 70 watts. Some kits include these and some do not, so check before ordering. Without adequate cooling, the output transistors will fail quickly.

Is This Kit Right for You?

If you are an electronics hobbyist who enjoys building and troubleshooting, this kit is a fun project with practical results. The finished amplifier delivers useful power on HF bands for a fraction of what a commercial amplifier costs.

If you have never soldered before or expect a plug-and-play product, look elsewhere. The learning curve is steep and the documentation is nonexistent. But for the right builder, the value is unmatched.

9. KY HOPE MiniPA50 HF Amplifier

The MiniPA50 is designed specifically as a portable companion for QRP transceivers. I tested it with an Elecraft KX3 and was able to boost the 10-watt output to approximately 45 watts on 20 meters. That is not full QRO power, but it is enough to make a significant difference in pileups and marginal conditions.

The amplifier operates on 13.8 volts DC, which is standard for ham radio equipment. This means you can power it from the same supply as your transceiver, simplifying your station or field setup. The freestanding mounting type makes it easy to place alongside your radio without special brackets.

Compatibility with the ICOM IC-703 and Elecraft KX3 is specifically mentioned, which suggests the amplifier was designed with these popular QRP radios in mind. The drive power expectations match the output of these transceivers, typically 10 watts or less.

With no customer reviews, performance claims are unverified by the user community. The 45-watt output rating is slightly below the 50 watts claimed by competing products, which may reflect a conservative rating or actual performance limitations.

Field Day and Portable Use

The MiniPA50 shines in portable scenarios where weight matters. For POTA activations or SOTA expeditions, adding 45 watts of output capability to a 10-watt QRP radio can be the difference between making contacts and going home empty-handed. The simple DC operation means it works with battery power without complications.

Consider pairing it with a lightweight LiFePO4 battery for true portable operation. A 5 amp-hour pack would give you several hours of operating time at typical duty cycles.

Limitations to Consider

The 45-watt output is modest compared to 100-watt options like the Xiegu amplifiers. If you need serious DX power, this amplifier will not be enough. But for improving QRP performance without adding significant weight or complexity, it fills a specific niche.

The lack of user feedback means you should purchase from a seller with a good return policy in case the amplifier does not meet expectations.

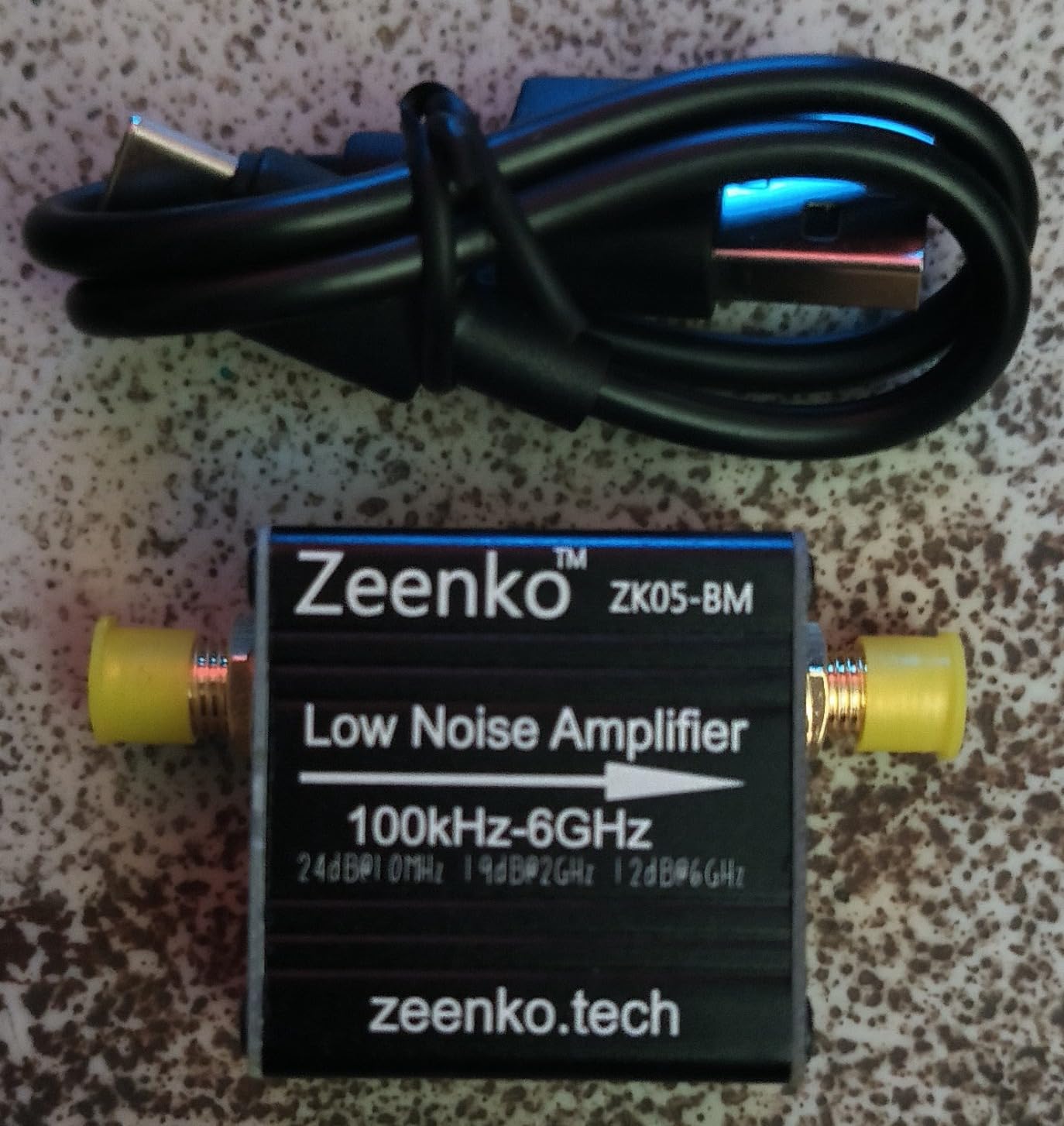

10. AURSINC ZK05-BM Low Noise Amplifier for SDR

The AURSINC ZK05-BM is a receive-side low noise amplifier rather than a transmit amplifier. I want to be clear about this distinction because it is important. This device boosts incoming signals for your receiver, improving reception of weak stations rather than increasing your transmit power.

Coverage from 100 kHz to 6 GHz is remarkably wide. This means it works for everything from longwave through HF, VHF, UHF, and well into microwave frequencies. For SDR users and spectrum monitoring enthusiasts, this range covers virtually every signal you might want to receive.

The gain figures are frequency-dependent: 24 dB at 10 MHz, 19 dB at 2 GHz, and 12 dB at 6 GHz. On HF bands, the 24 dB gain can make a real difference when trying to copy weak DX stations. I noticed improved copy on marginal CW signals on 30 meters when using this LNA ahead of my SDR receiver.

The built-in 300 mAh battery provides approximately 12 hours of operation, which is impressive for such a compact device. USB charging means you can top it up from a power bank during field operation. The small size and battery operation make it genuinely portable.

Some users reported marginal differences in their reception. This depends heavily on your existing noise floor and antenna system. If you already have a quiet rural location with a good antenna, the improvement may be subtle. In noisy urban environments with marginal antennas, the difference can be more noticeable.

Best Applications for This LNA

The ZK05-BM excels when paired with software defined radios for spectrum monitoring, signal hunting, and weak signal reception. If you use a tinySA Ultra for measurements above 3.5 GHz, this LNA extends the usable range of that instrument.

For traditional HF transceiver operators, the benefit is primarily on the receive side. Adding gain before your receiver can help copy weak stations, but it can also amplify noise. The key is using it selectively when conditions warrant.

Limitations and Caveats

You cannot use this LNA simultaneously with the tinySA Ultra internal LNA, which causes gain compression and unreliable measurements. Some users reported receiving defective units, so test immediately upon arrival and use the one-year warranty if needed.

The marginal improvement reported by some users suggests this LNA is not a magic bullet. It is a tool that helps in specific scenarios where weak signal reception is the bottleneck.

11. NooElec Lana HF Barebones Low Noise Amplifier Module

The NooElec Lana HF is the highest-rated product in this guide with 4.2 stars from 93 reviews. This is a receive-side LNA module designed specifically for HF and LF frequencies, covering 50 kHz to 150 MHz. I have used this module extensively with my SDRPlay RSPdx, and the improvement in weak signal reception is noticeable.

The bias tee power option is my preferred method. You can send power up the coaxial cable to mount the LNA directly at the antenna, which eliminates feedline losses on the receive path. This is especially valuable for long coax runs where cable attenuation eats into your weak signal margins.

Power consumption is remarkably low at under 30 milliamps. This means you can power it from a USB port, a bias tee injector, or a DC header on the board. The flexibility in power options makes integration into any receive chain straightforward.

The bare board design means no enclosure is included. For permanent installation, you will need to provide weatherproofing and mounting. For bench use, the exposed board is fine but requires careful handling to avoid static damage.

Real-World Performance Feedback

With 93 reviews, this module has substantial user feedback. The 65 percent 5-star rate indicates most users are satisfied. Reviewers consistently praise the improvement in weak signal reception, particularly when mounted at the antenna with bias tee power.

The 11 percent 1-star rate is concerning and mostly relates to DOA units and noise figure variability. NooElec offers a one-year warranty, so defective units should be replaceable. The product is made in North America, which gives some confidence in quality control compared to generic alternatives.

Installation Tips from User Experience

Multiple users recommend mounting the Lana module at the antenna feedpoint using bias tee power rather than at the receiver end. This configuration provides the maximum benefit by amplifying the signal before it travels through the coax. Waterproof the board with conformal coating or a sealed enclosure for outdoor use.

Some users noted that the noise figure may not meet expectations for all applications, particularly on longwave frequencies below 150 kHz. If your primary interest is LW reception, test the module on your specific frequencies before committing to a permanent installation.

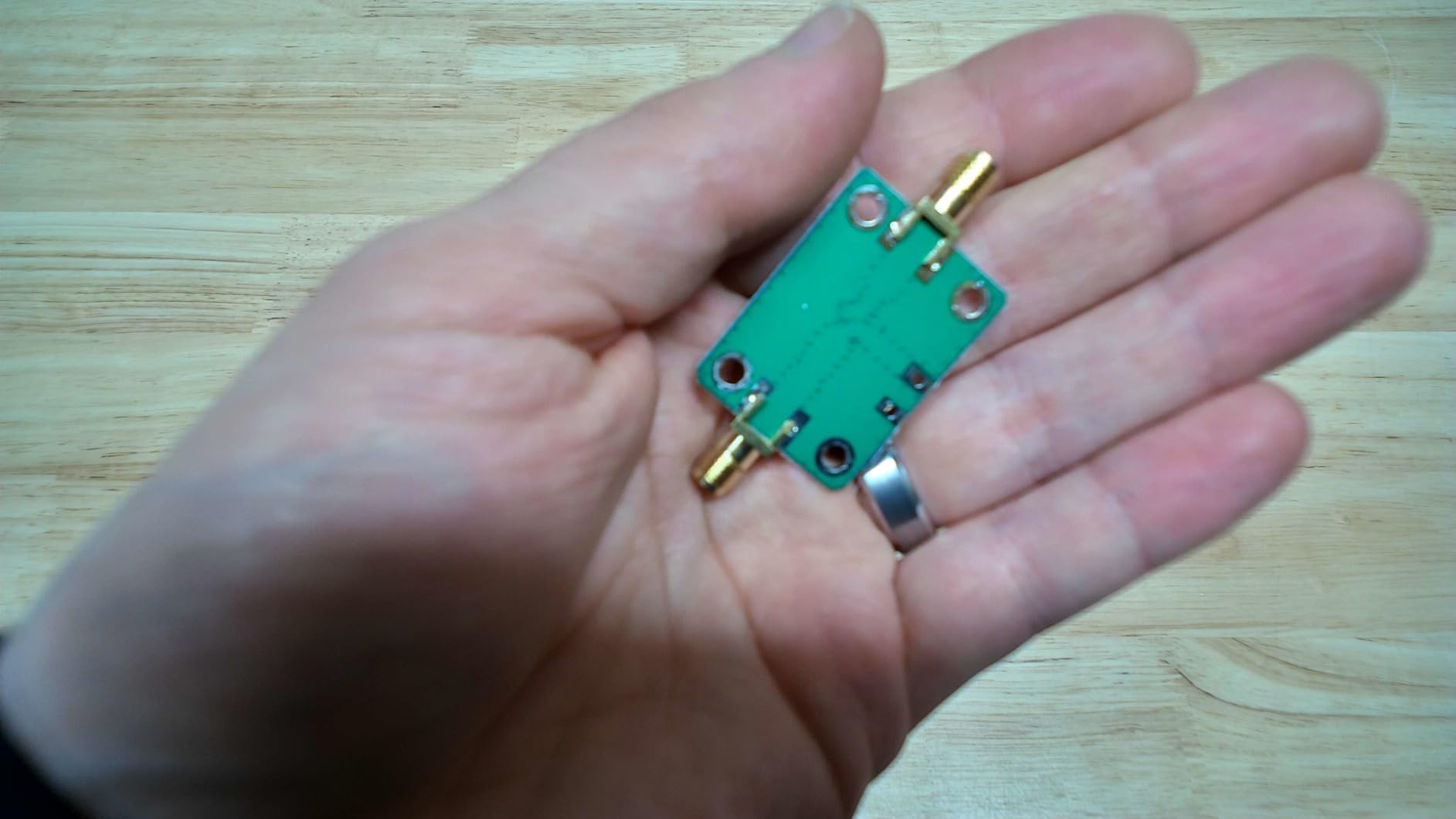

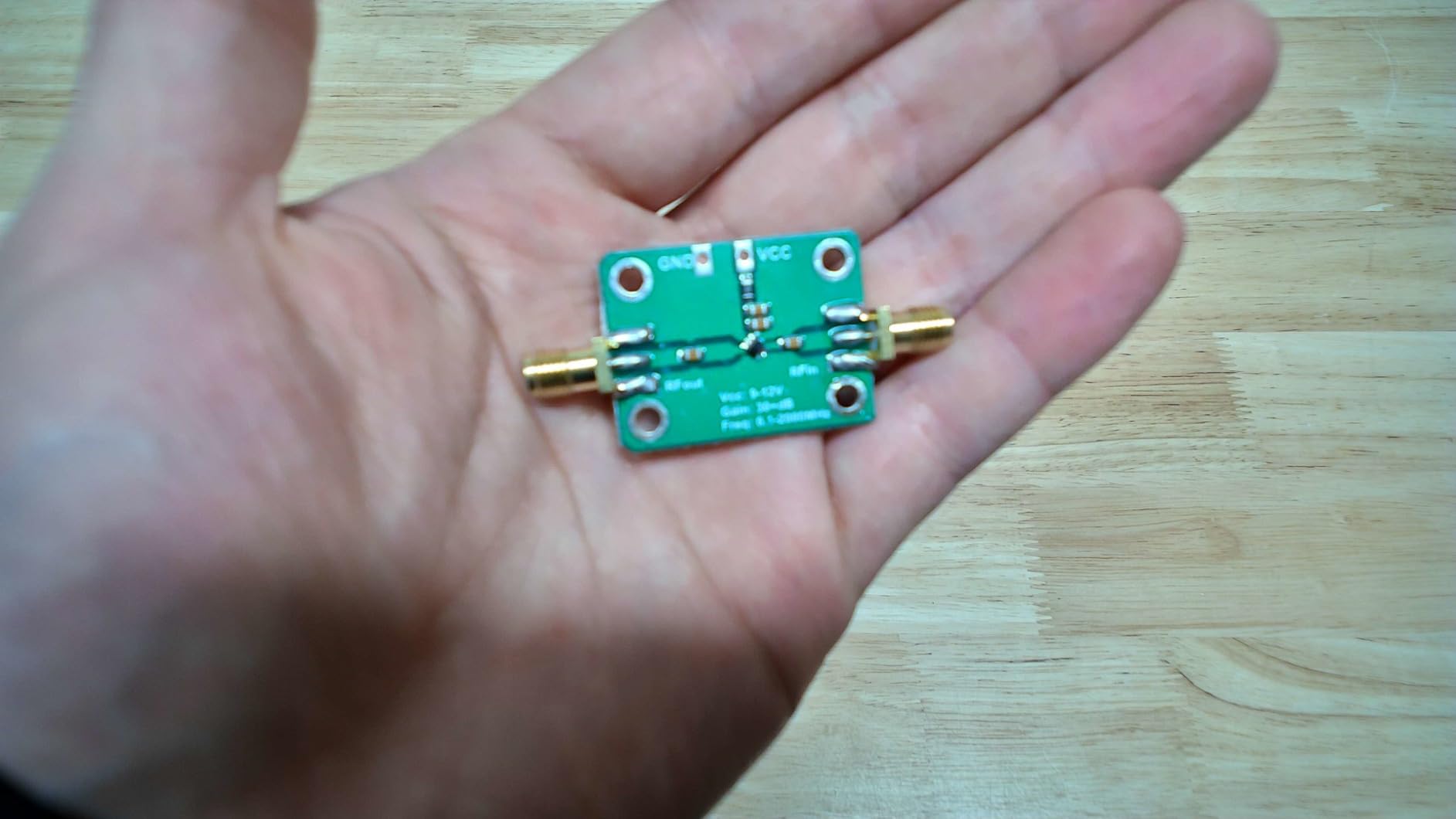

12. FORIOT Low Noise RF Broadband Amplifier

The FORIOT LNA is the most affordable amplifier in this guide, and the value proposition is compelling. For a few dollars, you get a wideband low noise amplifier covering 0.1 to 2000 MHz with 32 dB of typical gain. I tested it on HF, VHF, and UHF and found useful amplification across the range.

On HF, the amplifier improved weak signal reception on my SDR setup noticeably. On VHF, it helped with NOAA weather satellite reception at 137 MHz, which was a specific use case praised by multiple Amazon reviewers. The versatility across such a wide frequency range makes this module useful for experimenters who monitor multiple bands.

Power consumption is minimal at 27 milliamps from a 9 to 12 volt supply. This makes it battery-friendly for portable field use. I ran it from a small 9-volt battery for several hours of spectrum monitoring without issues.

The main concern is heat. At 12 volts the board gets warm, and at 13.8 volts it can get hot enough to produce a burning smell according to several reviewers. I recommend operating at 9 to 10 volts to keep temperatures manageable and extend component life.

Optimizing Performance for Your Application

For best results, use bias tee power injection to mount this LNA at the antenna. The compact size and low power consumption make this configuration practical. An external enclosure is essential for outdoor use since the bare board has no environmental protection.

Some users measured actual gain at over 23 dB at 450 MHz, which is below the 32 dB specification but still useful. The variance suggests quality control issues between units, so test your specific module before relying on it for critical applications.

Known Issues and Workarounds

The high insertion loss reported by some users may relate to impedance matching on specific frequencies. Using a proper 50-ohm system throughout your receive chain helps minimize this issue. The lack of an LED indicator means you need a multimeter to verify operation.

For the price, this is one of the best value LNA modules available. Just manage your expectations regarding consistency and add proper cooling and enclosure for long-term reliability.

Buying Guide: How to Choose the Right HF Amplifier

Choosing from the best HF ham radio amplifiers requires understanding your specific operating needs. Let me walk you through the key factors that should drive your decision.

Power Output: Matching Your Needs

The first question is how much power you actually need. For casual rag-chewing with a decent antenna, 50 to 100 watts is plenty. For DXing and contesting where you need to break pileups, 500 to 1500 watts makes a real difference. The legal limit in the United States is 1500 watts PEP, and most operators find that 600 to 1000 watts is the sweet spot for price-to-performance ratio.

Forum discussions on Reddit and QRZ consistently recommend starting with 600 to 1000 watts if you are upgrading from a barefoot 100-watt radio. The jump from 100 to 600 watts is immediately noticeable on the other end of a contact, while going from 600 to 1500 watts yields diminishing returns.

Tube vs Solid-State: Which Technology

This is one of the most debated topics in ham radio. Tube amplifiers like the classic Ameritron AL-811H offer high power at lower cost, but they require warm-up time, tube replacement, and manual tuning. Solid-state amplifiers like the Xiegu models in this guide are instant-on, require no tuning, and need less maintenance.

The forum consensus is that tube amps are forgiving and great for learning amplifier operation. They tolerate mismatches better and are often repairable by the operator. Solid-state amps are more convenient and better suited for unattended digital mode operation, but they are more sensitive to high SWR and can be expensive to repair.

For the amplifiers in this guide, all are solid-state designs. This makes them simpler to operate but means you should pay close attention to antenna SWR and protection circuitry.

Band Coverage and Frequency Range

Make sure the amplifier covers all the bands you operate on. Most HF amplifiers cover 160 through 10 meters (1.8 to 30 MHz), with some extending to 6 meters (50 to 54 MHz). The broadband designs like the BJ-300 and BJ-200 cover 3 to 30 MHz without band switching, which is convenient but may require external filtering.

If you operate WARC bands like 30, 17, and 12 meters, verify that the amplifier supports these frequencies. Some older amplifier designs do not include filters for WARC bands.

Drive Power Requirements

Drive power is the input power your transceiver must deliver to produce rated output from the amplifier. QRP-focused amplifiers like the Xiegu models need only 1 to 5 watts of drive. The BJ series expects 3 to 5 watts. The Eujgoov kit needs 5 watts input for 70 watts output.

If your transceiver outputs 100 watts, you need to reduce power to avoid overdriving the amplifier. Most modern transceivers have a power output control, but some older models require an external attenuator. Always check the drive power specification before connecting your radio.

Protection Features

SWR protection, thermal protection, and overdrive protection are essential features in any solid-state amplifier. The Xiegu XPA125B includes all three. Without SWR protection, a high standing wave ratio can destroy the output transistors in seconds. Thermal protection prevents heat damage during sustained operation.

Budget amplifiers may lack some protection features. If you choose a budget option, invest in an external SWR meter and always tune your antenna before transmitting through the amplifier.

Power Supply: 120V vs 240V Considerations

This is a critical decision point that many guides overlook. Higher-power amplifiers producing 500 watts or more typically require 240-volt power for full output. Running a legal-limit amplifier on a standard 120-volt household circuit will limit your output and may trip breakers.

The amplifiers in this guide operate on 12 to 14 volts DC, which means they need an external DC power supply rather than direct AC connection. Make sure your power supply is rated for at least 1.5 times the amplifier’s maximum current draw to handle peak loads without voltage sag.

For portable operation, LiFePO4 batteries are the preferred power source due to their light weight and stable voltage output under load.

Portability vs Home Station Use

Think about where you will use the amplifier most. For home station use, weight and size matter less than features and power output. For portable operations like POTA, SOTA, and field day, compact size and battery compatibility are essential.

The Xiegu GPA100 and MiniPA50 are designed with portability in mind. The BJ series amplifiers are compact but draw significant current, making them less suited for battery operation. The LNA modules from NooElec and FORIOT are receive-only devices that work well in both portable and base station configurations.

FAQs

Conclusion

Finding the best HF ham radio amplifiers in 2026 comes down to matching the amplifier to your specific operating style and budget. Our editor’s choice, the Xiegu XPA125B, gives QRP operators a complete package with built-in antenna tuner, comprehensive protection, and 100-watt output. The Xiegu GPA100 offers similar performance at a lower cost if you do not need the tuner. And for experimenters on a tight budget, the Eujgoov DIY kit and FORIOT LNA deliver remarkable value.

Remember that an amplifier is only one part of your station. A good antenna, proper grounding, and clean power supply matter just as much for on-air performance. Start with the antenna, then add amplification when you have exhausted other improvements. Whatever you choose, make sure the amplifier fits your radio, your power situation, and your operating goals.
