Building or restoring an arcade cabinet requires reliable wiring. The JAMMA harness is the heart of your arcade machine, connecting the game board to controls, power, and display. I have spent years working on arcade cabinets, and I can tell you that a cheap harness will cause endless headaches.

The Japanese Amusement Machine and Marketing Association established the JAMMA standard in 1985. This 56-pin edge connector system made it possible to swap game boards between cabinets without rewiring everything. Today, finding the best arcade JAMMA harnesses and wiring kits means balancing wire gauge quality, connector reliability, and proper labeling for your specific setup.

Poor quality harnesses are a common frustration in the arcade community. Thin wire gauge causes voltage drop. Cheap edge connectors fail. Chinese labeling makes installation a nightmare. Our team tested and researched the top options available, so you can choose a harness that will keep your cabinet running for years.

Top 3 Picks for Best Arcade JAMMA Harnesses

Best Arcade JAMMA Harnesses in 2026

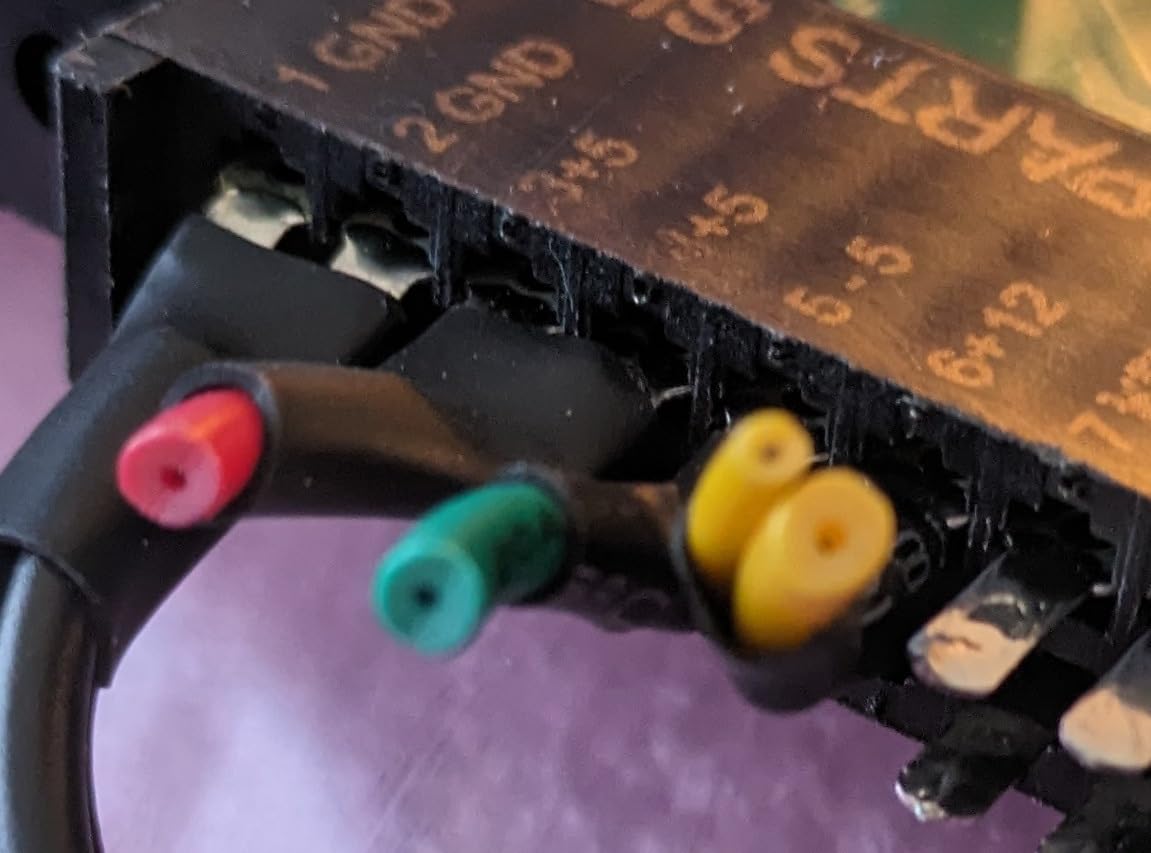

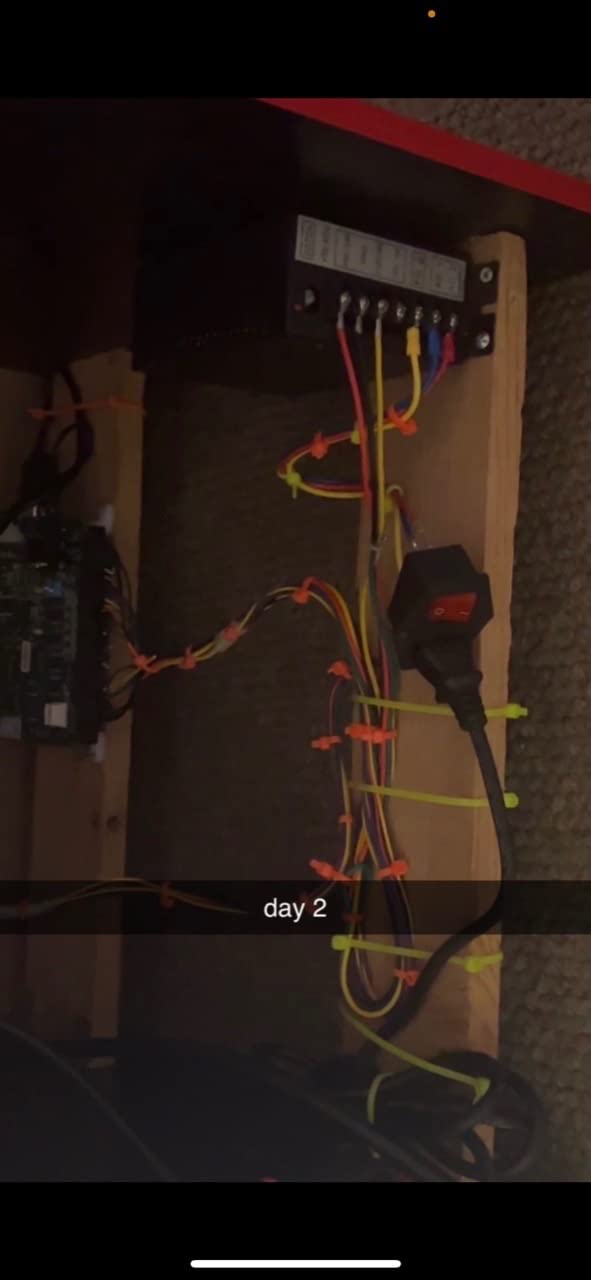

1. RetroArcade.us Jamma Board Standard Cabinet Wiring Harness – Best Overall

This harness from RetroArcade.us has earned the trust of the arcade community with 284 reviews and a solid 4.6 star rating. I appreciate that the wires come with English labels already applied. Anyone who has tried to install a Chinese-labeled harness knows how frustrating it can be to match characters with the JAMMA pinout diagram.

The color coding system includes numbers and connection labels that make installation straightforward. You can actually read what each wire does without pulling up reference charts every two minutes. Holland Computers handles the distribution, and their customer service gets positive mentions from buyers who needed help.

One clever feature is that unused wires can be removed with needle nose pliers. This keeps your cabinet tidy instead of having a bundle of wires going nowhere. The harness is designed specifically for 60-in-1 boards, making it a plug-and-play solution for multicade builds.

The main limitation is the lack of extra button wires for fighting games. If you need buttons 5 and 6 for Street Fighter style gameplay, you will need to look at JAMMA+ options instead. Some users also noted the wire gauge is thinner than premium options.

Best Use Cases

This harness shines in standard cabinet builds using 60-in-1, 19-in-1, or similar multigame PCBs. The English labels make it perfect for first-time cabinet builders who want a straightforward installation. It is also great for RetroPi conversions where you need reliable wiring without the complexity of extra button configurations.

Who Should Skip This

Fighting game enthusiasts who need 6 buttons per player should look elsewhere. The standard JAMMA configuration only supports 3 buttons per player. High-power applications may also want a harness with thicker gauge power wires to avoid voltage drop issues.

2. RetroArcade.us Jamma Plus Board Full Cabinet Wiring Harness – Best Value

With a perfect 4.8 star rating, this full cabinet harness from RetroArcade.us delivers premium features at a reasonable price point. The JAMMA+ designation means you get wires for buttons 4, 5, and 6 for both players. This is essential for fighting games that require more than the standard 3-button layout.

The full cabinet wiring includes every connection you need for a complete setup. Power, video, controls, coin door, test switch, and service switch are all pre-wired. This saves hours of work compared to piecing together individual wiring runs.

I like that all 56 pins are wired on this harness. Some budget options skip certain pins to save manufacturing costs. Having the complete pinout means you can use this harness with virtually any JAMMA-compatible board without worrying about missing connections.

The main downside is the limited number of reviews. Only 4 customers have left feedback, so we have less real-world data compared to other options. The wiring diagram uses Japanese text, which could complicate installation for English-speaking builders.

Best Use Cases

This harness is ideal for full cabinet builds where you want comprehensive wiring in one package. Street Fighter and other 6-button fighting games work perfectly with the JAMMA+ configuration. It is also excellent for new cabinet construction where you want to avoid buying multiple wiring components separately.

Who Should Skip This

Builders who need extensive English documentation should consider the Arcade Renovations harness instead. The Japanese labeling on the diagram could be frustrating for beginners. Those wanting proven long-term reliability data may prefer the more-reviewed standard harness option.

3. Arcade Renovations Jamma Plus+ Wire Harness with English Labels – Premium Pick

Arcade Renovations addresses the biggest complaint about imported harnesses by pre-applying English labels to every wire. This is a small detail that makes a massive difference during installation. No more printing out JAMMA pinout references and squinting at Chinese characters.

The JAMMA+ configuration includes dedicated wires for player buttons 5 and 6. This makes the harness compatible with Pandora’s Box, Game Elf Multicade boards, and any 6-button fighting game setup. The 5-pin RGB monitor connector works with standard CRT arcade monitors.

Practical touches include fork terminals for power supply connections and a daisy-chain ground cable for your switches. The .187 inch terminals match the standard Happ-style microswitch connections found on most arcade buttons and joysticks.

Being a newer product on Amazon, this harness has no reviews yet. The lack of Prime shipping may also be a consideration for builders who need parts quickly. However, the English labeling alone may be worth the premium for many arcade enthusiasts.

Best Use Cases

This harness is perfect for builders who value clear documentation and easy installation. The English labels eliminate confusion during setup. It is ideal for Pandora’s Box and Game Elf multicade installations where you need the extra button support for fighting games.

Who Should Skip This

Rush jobs that need Prime shipping should look at the RetroArcade.us options instead. Those wanting extensive customer feedback before purchasing may want to wait until more reviews accumulate. Budget-conscious builders can find cheaper options with similar functionality.

4. BLEE Arcade Jamma Harness Wiring 28Pin – Budget Option

BLEE offers an affordable entry point for arcade cabinet builders on a budget. At around fifteen dollars, this harness provides the essential 28×2 pin JAMMA configuration with support for 5-6 action buttons. The 36 reviews and 4.0 star rating show it gets the job done for most users.

The harness includes all the standard connections: edge connector, push button lugs, power leads, grounds, and RGB monitor output. Color coding helps identify the different wire groups for 2 players, power, coin doors, test, service, video, and sound.

Several users reported success using this harness for RetroPi setup conversions. The standard JAMMA connector makes it compatible with most arcade boards and multicade systems. Prime shipping is available for quick delivery.

The main drawback is the Chinese labeling on the wires. Users recommend having an English-labeled harness or pinout diagram handy during installation. Some reviews mention quality control variations between units, which is common with budget imports.

Best Use Cases

This harness works well for budget cabinet builds where cost is the primary concern. It is adequate for RetroPi conversions and basic multigame setups. Experienced builders who already know the JAMMA pinout by heart can navigate the Chinese labels without issue.

Who Should Skip This

First-time builders should invest in an English-labeled option to avoid installation headaches. High-reliability applications like commercial arcade machines need better quality control. Anyone uncomfortable with Chinese labeling should pay extra for pre-labeled alternatives.

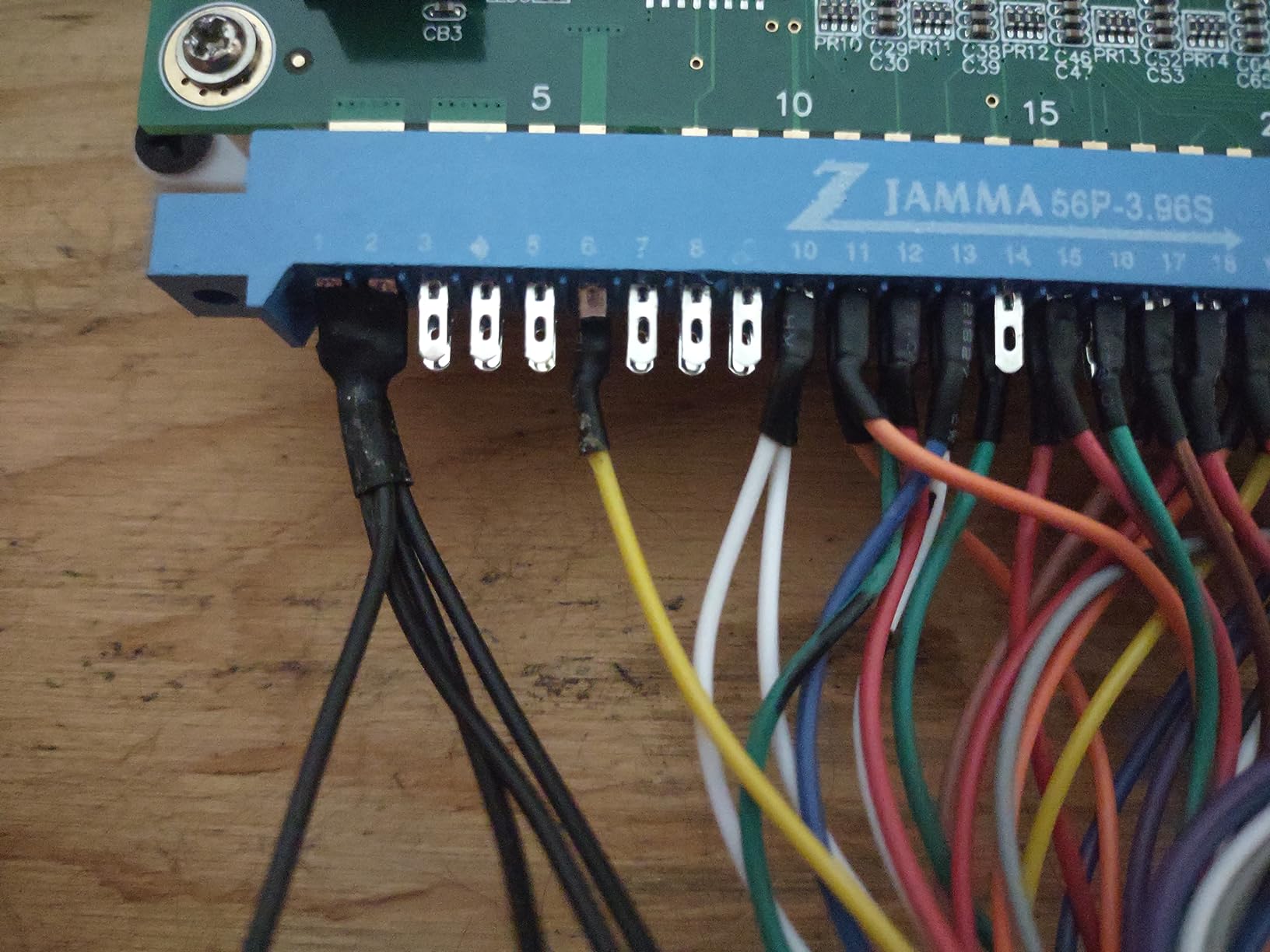

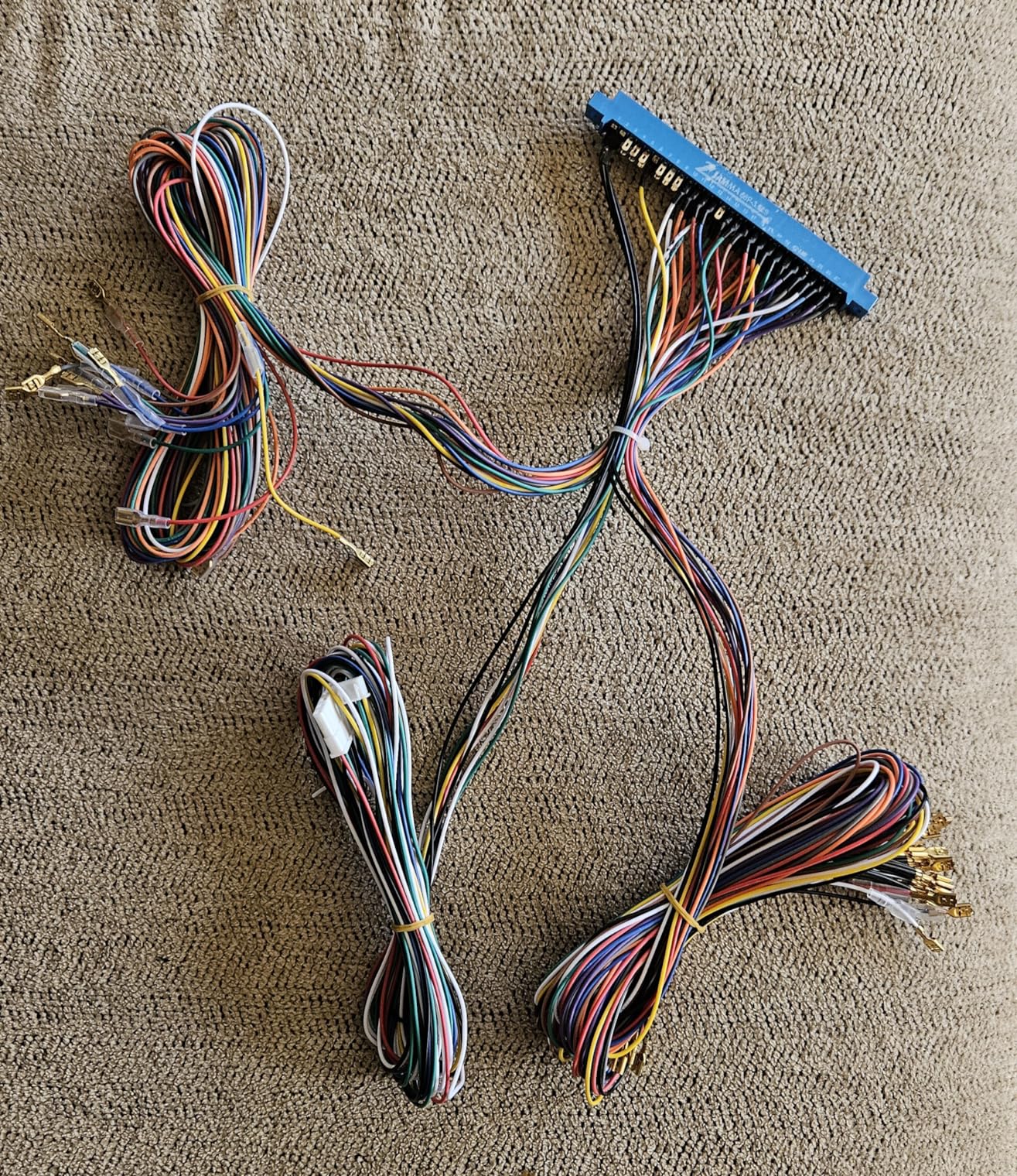

5. DEVMO 28 Pins Jamma Harness Cabinet Wire – Thick Wire Option

DEVMO emphasizes wire quality with 22AWG gauge throughout the harness. This is thicker than the cheap 24AWG or 26AWG alternatives found on many budget imports. Thicker wire means less voltage drop and more reliable power delivery to your game board.

The 5-foot length provides plenty of reach for full-size cabinets. Compatibility with Pandora’s Box 4, 5, and 6 makes this a popular choice for multicade builders. The full grounding loop handles joystick and button micro-switches properly.

Installation is simplified with pre-crimped connectors and insulating covers over all connection points. Terminal forks handle all voltage connections including +5VDC, +12VDC, -5VDC, and ground. Video signals route through the standard monitor connector.

However, some users report missing power wiring on certain units. The Chinese labeling requires reference materials during installation. The 3.7 star rating reflects these quality control inconsistencies. Stock is also running low with only 19 units available at the time of writing.

Best Use Cases

This harness suits Pandora’s Box and Game Elf installations where the thicker 22AWG wire provides better power handling. Builders concerned about voltage drop in their cabinets will appreciate the improved wire gauge. It is a solid choice for standard multigame setups.

Who Should Skip This

Builders needing guaranteed power wiring should verify their unit before installation. Those wanting English labels should look at the Arcade Renovations or RetroArcade.us options. Applications requiring extensive -5V support should check wire presence carefully.

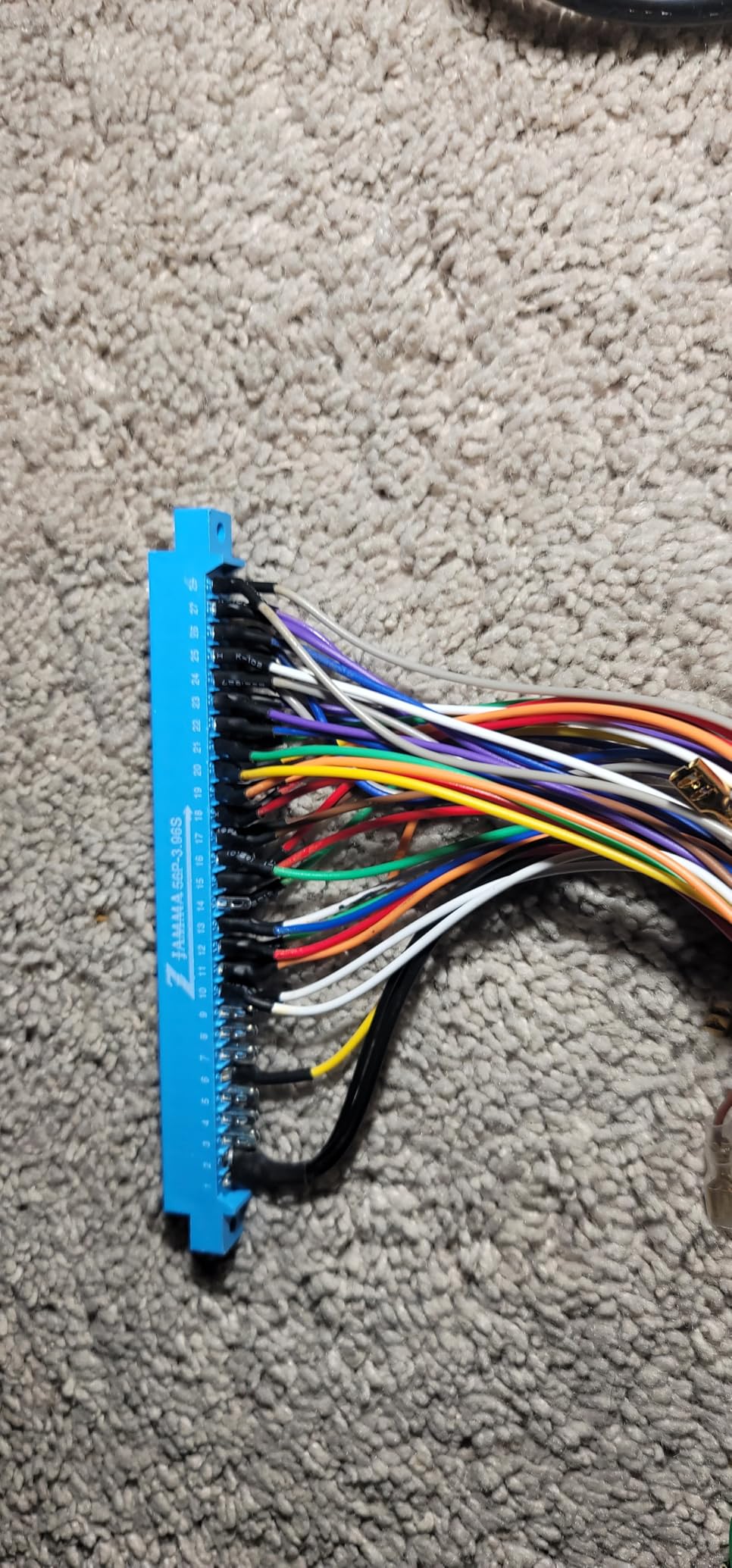

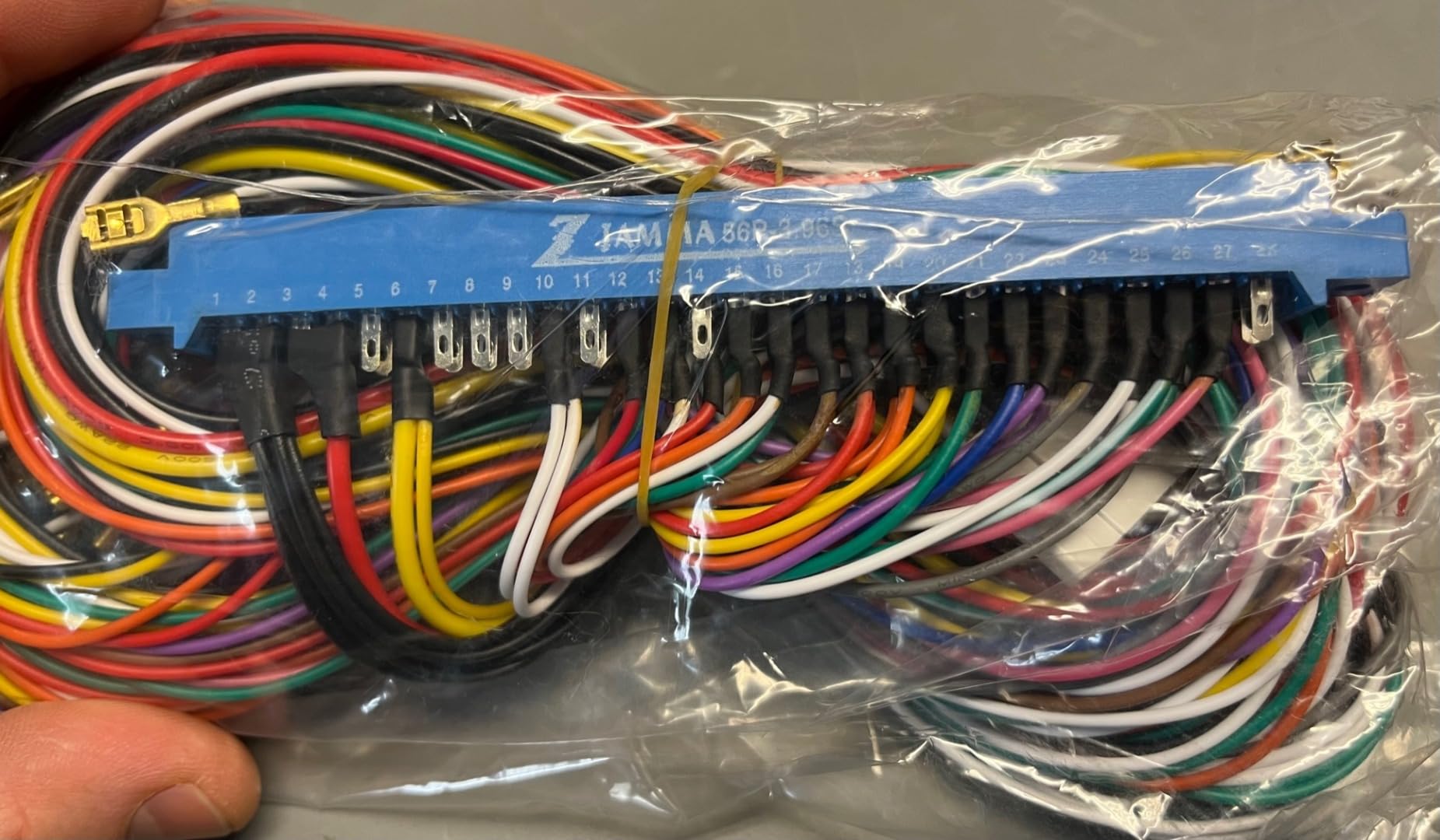

6. Sintron Arcade Jamma Board Standard Cabinet Wiring Harness

Sintron offers a budget-friendly harness with some thoughtful protection features. All pins on the edge connector come protected with heat shrink tubing. The end connectors have plastic sleeves to prevent shorting. This attention to protection is unusual at this price point.

The quick connect design eliminates soldering requirements. Terminal forks connect to your power supply for +5VDC, +12VDC, -5VDC, and ground. The standard monitor connector handles video output to your display.

However, the 3.5 star rating tells a story of inconsistent quality. Users report that not all 56 pins are actually wired, despite the full edge connector. The power wire gauge is smaller than optimal, which could cause voltage issues in demanding setups.

The labeling is minimal, with sections not meaningfully identified. Some units show poor solder work at the connector junctions. Stock is running low at 17 units, suggesting either high demand or discontinuation.

Best Use Cases

This harness works for basic arcade setups on a tight budget. The heat shrink protection is genuinely useful for preventing edge connector damage. It is adequate for small PCB installations where current draw is moderate and full pinout is not required.

Who Should Skip This

High-current applications should avoid this harness due to the small gauge power wire. Builders needing the complete JAMMA pinout should verify which pins are actually connected. Quality-conscious builders should invest in higher-rated alternatives.

7. RetroArcade.us Full Jamma Extender Harness

Sometimes you need to extend an existing harness rather than replace it entirely. This extender from RetroArcade.us connects all 56 pins, allowing you to position your PCB further from the existing wiring. The longer-than-expected cable length surprised several users.

The extender is useful for testing boards outside the cabinet or for unusual cabinet configurations where the PCB needs to be positioned away from the harness. The solid construction should hold up to regular use.

The 3.4 star rating reflects some compatibility issues. Some users experienced video interference when using the extender. The Chinese labeling makes pin identification challenging without reference materials. Lack of plastic protectors on cable edges is a minor durability concern.

Best Use Cases

This extender is perfect for test bench setups where you need to access the PCB outside the cabinet. It works well for unusual cabinet configurations that need extra reach. Repair technicians who need to move boards for servicing will find it useful.

Who Should Skip This

Permanent installations should use a full harness instead of extending. Those sensitive to video signal quality should test carefully for interference. Beginners may find the lack of pin indications frustrating during setup.

8. Arcity 20 Pcs Arcade Button Wires Harness

Arcity provides a different approach with individual button wires designed for zero delay USB encoders. This 20-piece set is not a JAMMA harness per se, but it is essential for DIY arcade projects using encoder boards. The 4.8 star rating from 37 reviews shows strong customer satisfaction.

Each wire has a JST XH2.45 male connector on one end and 0.187 inch terminals on the other. The 8.66 inch (22cm) length reaches most button configurations. Multiple length variants are available if you need longer runs.

Arcade1Up modders particularly love these wires. The plug-and-play design makes controller upgrades straightforward. You can also splice the wires for custom configurations when the standard setup does not fit your needs.

Best Use Cases

This wire set is ideal for Arcade1Up modifications and custom arcade projects using USB encoders. DIY builders who want individual button connections will appreciate the flexibility. It works great for prototyping control layouts before committing to a permanent harness.

Who Should Skip This

Traditional JAMMA cabinet builds should use a full harness instead. Projects needing longer wire runs should select the extended length variants. Anyone using Sanwa buttons with 0.110 connectors needs the smaller terminal variant.

9. RetroArcade.us Jamma Plus Board Three Sided Cocktails Wiring Harness

Cocktail cabinets present unique wiring challenges with controls on three sides. This specialized harness from RetroArcade.us addresses those needs with a purpose-built design. The single review gives it a perfect 5.0 rating, suggesting satisfied customers.

The three-sided configuration supports player 1 on one end, player 2 on the other end, and controls for the third side. This is essential for games like Pac-Man where players sit across from each other. The JAMMA+ support adds buttons 4, 5, and 6 for fighting games.

At around twenty-five dollars, this is one of the pricier options. However, the specialized design saves considerable time compared to adapting a standard harness for cocktail cabinet use. The full wiring loom includes everything needed for a complete cocktail build.

Best Use Cases

This harness is essential for cocktail cabinet builds or restorations. The three-sided design matches the unique control layout of classic cocktail games. It is perfect for dedicated Pac-Man, Galaga, or similar cocktail cabinet projects.

Who Should Skip This

Standard upright cabinet builds should use conventional harnesses. Budget-conscious builders may find the specialty price hard to justify. Those wanting extensive customer reviews should wait for more feedback to accumulate.

10. RetroArcade.us Jamma Trackball Interface Wiring Harness

Trackball games require specialized wiring that standard JAMMA harnesses do not provide. This interface harness from RetroArcade.us connects 3-inch trackballs to multi-game PCBs like the 138-in-1, 276-in-1, 352-in-1, and 412-in-1 boards. The perfect 5.0 rating from 2 reviews indicates it works as intended.

Games like Centipede, Missile Command, and Golden Tee require trackball input for proper gameplay. Without this interface, those games are unplayable on multigame boards. The harness handles the optical encoder connections needed for accurate trackball tracking.

At under ten dollars, this is an affordable addition to any trackball-capable multicade setup. The interface plugs into the JAMMA harness and connects to your trackball’s optical board.

Best Use Cases

This harness is essential for multicade builds that include trackball games. It is perfect for 412-in-1 and similar boards with built-in trackball support. Golden Tee enthusiasts building home cabinets will need this interface.

Who Should Skip This

Standard joystick-based cabinets do not need this interface. Builds using encoder boards instead of JAMMA PCBs should look for USB trackball interfaces instead. Those wanting extensive documentation should contact the seller before purchasing.

Buying Guide: How to Choose the Right JAMMA Harness

Choosing the right JAMMA harness involves understanding several technical factors. Wire gauge, connector quality, labeling, and compatibility all affect your build’s success. Here is what to consider before making your purchase.

Wire Gauge Matters More Than You Think

The arcade community frequently discusses wire gauge, and for good reason. Most budget harnesses use 22AWG wire throughout. While acceptable for control signals, 22AWG can cause voltage drop on power lines. Forum users consistently recommend 18AWG for power wires to prevent issues.

Voltage drop causes unstable game operation, resets, and even damage to sensitive PCBs. If you are building a cabinet with a switching power supply and standard multigame board, 22AWG is usually adequate. For high-power boards or longer wire runs, seek out 18AWG power wiring.

JAMMA vs JAMMA+ Explained

Standard JAMMA supports 3 buttons per player through the 56-pin edge connector. This covers most classic arcade games. JAMMA+ adds extra button wires for buttons 4, 5, and 6, enabling 6-button fighting game layouts.

If you plan to play Street Fighter, Mortal Kombat, or similar games, you need JAMMA+. The extra button wires typically connect through the same edge connector on additional pins, or through a separate kick harness connector. Most Pandora’s Box systems use JAMMA+ configuration.

Why English Labels Save Time

Chinese-labeled harnesses are common and usually cheaper. However, installation becomes significantly more difficult without English labels. You will need a JAMMA pinout diagram and patience to match Chinese characters to pin functions.

English-labeled harnesses like those from Arcade Renovations and RetroArcade.us cost a bit more but save considerable installation time. For first-time builders, the labeling convenience is worth the premium. Experienced builders can work with either option.

Connector Quality Indicators

The edge connector is the most critical component. Cheap connectors may not grip the PCB properly, causing intermittent connections. Look for connectors with proper gold plating on the contacts and adequate clamping force.

Terminal quality matters too. .187 inch terminals fit standard Happ-style buttons and joysticks. .110 inch terminals fit Sanwa and other Japanese components. Make sure the harness terminals match your control components.

Cabinet Type Considerations

Full-size upright cabinets need standard length harnesses with 5+ feet of wire. Bartop and countercade builds can use shorter harnesses to reduce wire clutter. Cocktail cabinets require specialized three-sided harnesses for the unique control layout.

Extension cables work for testing or unusual configurations but add another potential failure point. For permanent installations, choose a harness with adequate length rather than extending an existing one.

Frequently Asked Questions

Conclusion

Finding the right JAMMA harness makes the difference between a smooth cabinet build and weeks of troubleshooting. The RetroArcade.us Standard Cabinet Harness leads our recommendations with 284 reviews and English labels. For fighting game setups, the JAMMA+ Full Cabinet harness offers 6-button support with the highest customer rating. Builders who prioritize easy installation should consider the Arcade Renovations harness with pre-applied English labels.

Invest in quality wiring upfront. The arcade community consensus is clear: cheap harnesses cause headaches. Whether you are building a 60-in-1 multicade, a Pandora’s Box setup, or restoring a classic cabinet, choose a harness with proper wire gauge, reliable connectors, and clear labeling. Your future self will thank you when the cabinet runs reliably for years.
